Simplicity Cobalt 26/61

The Simplicity Cobalt 26/61 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 852 cc 52 ci engine. The listed engine power is Engine Detail — 852 cc / 52 ci (listed): 26 hp / 19.4 kW. Transmission: Hydro-Gear PG-3/HGM-12. Operating weight: 1210 lbs 548 kg.

Overview

	2012 - 2025 Model year 201220142015-2025 Cobalt SeriesZero-turn mower Cobalt Series Zero-turn mower

Production
Manufacturer	Simplicity (a part of Briggs & Stratton)
Zero-turn mower

Simplicity Cobalt 26/61 Engine
26HP Kawasaki 852cc 2-cyl
Fuel tank	11 gal 41.6 L
Engine details ...

Simplicity Cobalt 26/61 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-post folding ROPS.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	55 inches 139 cm
Weight	1210 lbs 548 kg
Front tire	13x5.00-6
Rear tire	22x11.00-10
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	15
Battery CCA	340
Battery volts	12

Engine

Engine Detail — 852 cc / 52 ci

Manufacturer	Kawasaki FX801
Configuration	2-cylinder
vertical-shaft V-Twin
Displacement	852 cc 52 ci
Bore/Stroke	3.33x2.99 inches 85 x 76 mm
Power	26 hp 19.4 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Hydro-Gear PG-3/HGM-12

Transmission	Hydro-Gear PG-3/HGM-12
Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Cobalt 26/61 Tires
Lawn/turf front	13x5.00-6
Lawn/turf rear	22x11.00-10

Dimensions
Wheelbase	55 inches 139 cm
Length	83 inches 210 cm
Height (ROPS)	70 inches 177 cm
Weight	1210 lbs 548 kg

Attachments

61" Mower deck
Type	mid-mount Simplicity
	3-blade with manual lift
Cutting width	61 inches 154 cm
Overall width	78 inches 198 cm
Cut height	1.75 to 5 inch 4 to 12 cm
Cut positions	14

Photos

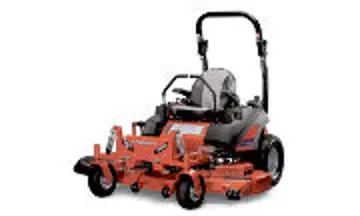

Simplicity Cobalt 26/61 tractor photo
