Simplicity Conquest 23/46

The Simplicity Conquest 23/46 is a tractor produced by Simplicity Lawn Tractors. The listed engine power is Gasoline (gross): 23 hp / 17.2 kW. Transmission: Tuff Torq K66. Operating weight: 670 lbs 303 kg.

Overview

	2010 - 2012 Conquest SeriesGarden tractor Conquest Series Garden tractor

Production
Manufacturer	Simplicity (a part of Briggs & Stratton)
Garden tractor
Original price was $5,399 in 2012

Simplicity Conquest 23/46 Engine
23HP Kohler 2-cyl gasoline
Fuel tank	4 gal 15.1 L
Engine details ...

Simplicity Conquest 23/46 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station with 18-inch adjustable seat.

Power Take-off (PTO)
Front PTO	independent
Front PTO Type	electric

Dimensions & Tires
Wheelbase	53 inches 134 cm
Weight	670 lbs 303 kg
Front tire	16x6.5-8
Rear tire	23x10.5-12
Full dimensions and tires ...

Engine

Engine Detail — Gasoline

Manufacturer	Kohler Courage
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled
Power (gross)	23 hp 17.2 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Tuff Torq K66

Transmission	Tuff Torq K66
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Conquest 23/46 Tires
Lawn/turf front	16x6.5-8
Lawn/turf rear	23x10.5-12

Dimensions
Wheelbase	53 inches 134 cm
Length	71 inches 180 cm
Width	56 inches 142 cm
Height	47 inches 119 cm
Weight	670 lbs 303 kg
Front axle	Cast-iron
Rear axle	1 inch diameter 25 mm

Attachments

46" Mower deck
Type	mid-mount Simplicity
	3-blade with manual with spring assist lift
Cutting width	46 inches 116 cm
Cut height	1 to 4 inch 2 to 10 cm
Cut positions	infinite

Photos

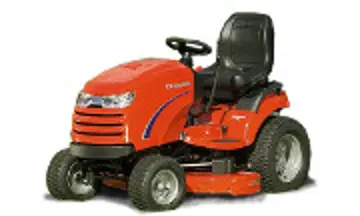

Simplicity Conquest 23/46 tractor photo
