Simplicity Conquest 23/54

The Simplicity Conquest 23/54 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 626 cc 38.2 ci engine. The listed engine power is Gasoline (gross): 23 hp / 17.2 kW. Transmission: Tuff Torq K66. Operating weight: 1694366 lbs 768564 kg.

Overview

	2006 - 2009 Conquest SeriesGarden tractor Conquest Series Garden tractor

Production
Manufacturer	Simplicity (a part of Briggs & Stratton)
Garden tractor
Original price was $6,150 in 2009

Simplicity Conquest 23/54 Engine
23HP Vanguard 626cc 2-cyl gasoline
Fuel tank	4 gal 15.1 L
Engine details ...

Simplicity Conquest 23/54 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Differential lock	mechanical rear
Manual steering
Disc brakes
Open operator station with 18-inch adjustable seat.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	53 inches 134 cm
Weight	711 lbs 322 kg
Front tire	16x6.5-8
Rear tire	23x10.5-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	16
Battery CCA	340
Battery volts	12

References
Operator's Manual Prestige / 1800 / 2800 / 500 Series, Conquest / 1700 / 2700 / 400 Series (1735106) published in 2010
Product Guide 2008 published by Simplicity

Engine

Engine Detail — 626 cc / 38.2 ci Gasoline

Manufacturer	Vanguard 386777
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	626 cc 38.2 ci
Bore/Stroke	2.97x2.76 inches 75 x 70 mm
Power (gross)	23 hp 17.2 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Tuff Torq K66

Transmission	Tuff Torq K66
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Conquest 23/54 Tires
Lawn/turf front	16x6.5-8
Lawn/turf rear	23x10.5-12

Dimensions
Wheelbase	53 inches 134 cm
Length	75 inches 190 cm
Width	39 inches 99 cm
Height	47 inches 119 cm
Weight	711 lbs 322 kg
Front axle	Cast-iron
Rear axle	1 inch diameter 25 mm

Attachments

Attachment overview
54" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

54" Mower deck
Type	mid-mount Simplicity 1694366
	3-blade with manual with spring assist lift
Cutting width	54 inches 137 cm
Weight	1694366 lbs 768564 kg
Overall width	64 inches 162 cm
Cut height	1 to 3.75 inch 2 to 9 cm
Cut positions	infinite

Photos

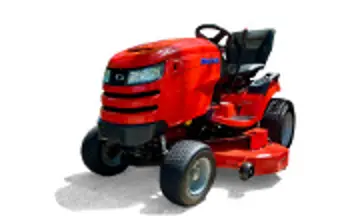

Simplicity Conquest 23/54 garden tractor.
