Simplicity Conquest 24/52

The Simplicity Conquest 24/52 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 724 cc 44.2 ci engine. The listed engine power is Gasoline (gross): 24 hp / 17.9 kW. Transmission: Tuff Torq K66. Operating weight: 680 lbs 308 kg.

Overview

	2010 - 2012 Conquest SeriesGarden tractor Conquest Series Garden tractor

Production
Manufacturer	Simplicity (a part of Briggs & Stratton)
Garden tractor
Original price	$5,799 (2012 manual steer )
	$6,199 (2012 power steer )
The Conquest was available in European markets with four-wheel drive.

Variants
2724H	similar Massey Ferguson model

Simplicity Conquest 24/52 Engine
24HP Briggs & Stratton 724cc 2-cyl gasoline
Fuel tank	4 gal 15.1 L
Engine details ...

Simplicity Conquest 24/52 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Steering	power OptOptional
Open operator station with 18-inch adjustable seat.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	53 inches 134 cm
Weight	680 lbs 308 kg
Front tire	16x6.5-8
Rear tire	23x10.5-12
Full dimensions and tires ...

Engine

Engine Detail — 724 cc / 44.2 ci Gasoline

Manufacturer	Briggs & Stratton Professional
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	724 cc 44.2 ci
Bore/Stroke	3.12x2.89 inches 79 x 73 mm
Power (gross)	24 hp 17.9 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Tuff Torq K66

Transmission	Tuff Torq K66
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Conquest 24/52 Tires
Lawn/turf front	16x6.5-8
Lawn/turf rear	23x10.5-12

Dimensions
Wheelbase	53 inches 134 cm
Length	71 inches 180 cm
Width	62 inches 157 cm
Height	47 inches 119 cm
Weight	680 lbs 308 kg
Front axle	Cast-iron
Rear axle	1 inch diameter 25 mm

Attachments

52" Mower deck
Type	mid-mount Simplicity
	3-blade with manual with spring assist lift
Cutting width	52 inches 132 cm
Cut height	1 to 4 inch 2 to 10 cm
Cut positions	infinite

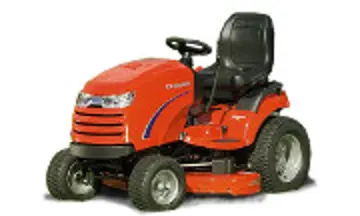

Photos

Simplicity Conquest
