Simplicity Courier 23/42
The Simplicity Courier 23/42 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 724 cc 44.18 ci engine. The listed engine power is Engine Detail — 724 cc / 44.18 ci (listed): 23 hp / 17.2 kW. Transmission: Hydro-Gear EZT.
Engine Power
Engine Detail — 724 cc / 44.18 ci (listed): 23 hp / 17.2 kW
Fuel & Capacities
3 gal
11.4 L
Transmission
Hydro-Gear EZT
Overview
 | 2016 -
Courier SeriesZero-turn mower |
|---|---|
2016 - | |
Courier Series | |
Zero-turn mower | |
2016 - | |
|---|---|
Courier Series | |
Zero-turn mower |
Production | |
|---|---|
Manufacturer | Simplicity (a part of Briggs & Stratton) |
Zero-turn mower | |
Original price was $3,000 in 2017 | |
Simplicity Courier 23/42 Engine | |
|---|---|
23HP Briggs & Stratton 724cc 2-cyl | |
Fuel tank | 3 gal
11.4 L |
Engine details ...  | |
Simplicity Courier 23/42 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Front tire | 11x4.00-5 |
Rear tire | 20x8-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery CCA | 230 |
Battery volts | 12 |
Engine
| 2016 -
Courier SeriesZero-turn mower |
|---|---|
2016 - | |
Courier Series | |
Zero-turn mower | |
2016 - | |
|---|---|
Courier Series | |
Zero-turn mower |
Engine Detail — 724 cc / 44.18 ci
Manufacturer | Briggs & Stratton |
Configuration | 2-cylinder |
vertical-shaft V-Twin | |
Displacement | 724 cc
44.18 ci |
Bore/Stroke | 3.12x2.89 inches
79 x 73 mm |
Power | 23 hp
17.2 kW |
Starter | electric |
Starter volts | 12 |
Transmission
| 2016 -
Courier SeriesZero-turn mower |
|---|---|
2016 - | |
Courier Series | |
Zero-turn mower | |
2016 - | |
|---|---|
Courier Series | |
Zero-turn mower |
Transmission — Hydro-Gear EZT
Transmission | Hydro-Gear EZT |
Type | hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
| 2016 -
Courier SeriesZero-turn mower |
|---|---|
2016 - | |
Courier Series | |
Zero-turn mower | |
2016 - | |
|---|---|
Courier Series | |
Zero-turn mower |
Simplicity Courier 23/42 Tires | |
|---|---|
Lawn/turf front | 11x4.00-5 |
Lawn/turf rear | 20x8-8 |
Dimensions | |
|---|---|
Length | 72 inches
182 cm |
Height | 42 inches
106 cm |
Attachments
| 2016 -
Courier SeriesZero-turn mower |
|---|---|
2016 - | |
Courier Series | |
Zero-turn mower | |
2016 - | |
|---|---|
Courier Series | |
Zero-turn mower |
42" Mower deck | |
|---|---|
Type | mid-mount Simplicity |
2-blade with manual lift | |
Cutting width | 42 inches
106 cm |
Cut height | 1.5 to 4.5 inch
3 to 11 cm |
Cut positions | 13 |
Photos

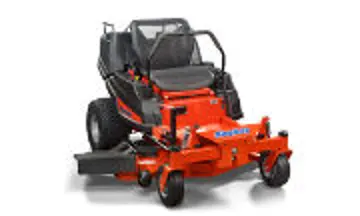

Simplicity Courier 23/42 tractor photo
Simplicity Lawn Tractors Simplicity Courier 23/42 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Simplicity Lawn Tractors Simplicity Courier 23/42.
Converted Equivalents:
Horsepower (HP)23 hp
Kilowatts (kW)17.2 kW
Metric Horsepower (PS / CV)23.3 PS
