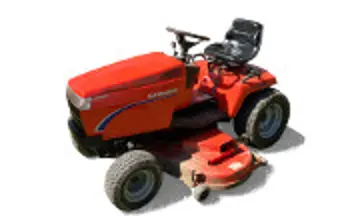

Simplicity Landlord 23 DLX

The Simplicity Landlord 23 DLX is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 673 cc 41.1 ci engine. The listed engine power is Gasoline (gross): 23 hp / 17.2 kW. Transmission: Tuff Torq K71. Operating weight: 560 lbs 254 kg.

Overview

	2000 - 2001 Landlord SeriesGarden tractor Landlord Series Garden tractor

Production
Manufacturer	Simplicity
Garden tractor
Built in Port Washington, Wisconsin, USA

Variants
1723H	similar AGCO model
2723H	similar Massey Ferguson model

Simplicity Landlord 23 DLX Engine
23HP Kohler 673cc 2-cyl gasoline
Fuel tank	4.25 gal 16.1 L
Engine details ...

Simplicity Landlord 23 DLX Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Differential lock	mechanical rear
Power steering
Open operator station.

Tractor hitch
Type	sleeve hitch OptOptional

Power Take-off (PTO)
Mid PTO	independent
Clutch	electro-magnetic
Mid PTO Type	pulley

Dimensions & Tires
Wheelbase	52.25 inches 132 cm
Weight	560 lbs 254 kg
Front tire	16x6.50-8
Rear tire	23x10.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	15
Battery CCA	340
Battery volts	12

References
The way to a beautiful lawn. published in 2000, by Simplicity
Product Guide Fall 2001 published by Simplicity

Engine

Engine Detail — 673 cc / 41.1 ci Gasoline

Manufacturer	Kohler CV23S
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	673 cc 41.1 ci
Bore/Stroke	3.15x2.64 inches 80 x 67 mm
Power (gross)	23 hp 17.2 kW
Starter	electric
Starter volts	12

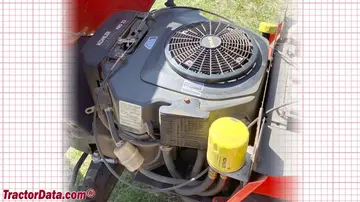

Simplicity Landlord 23 DLX Engine
Image courtesy of Tim

Transmission

Transmission — Tuff Torq K71

Transmission	Tuff Torq K71
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Landlord 23 DLX Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x10.50-12

Dimensions
Wheelbase	52.25 inches 132 cm
Length	75.25 inches 191 cm
Width	39 inches 99 cm
Height (steering wheel)	42.5 inches 107 cm
Height (hood)	36 inches 91 cm
Shipping weight	560 lbs 254 kg

Attachments

Attachment overview
54" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

54" Mower deck
Type	mid-mount Simplicity
	3-blade
Cutting width	54 inches 137 cm
Overall width	65 inches 165 cm

Photos

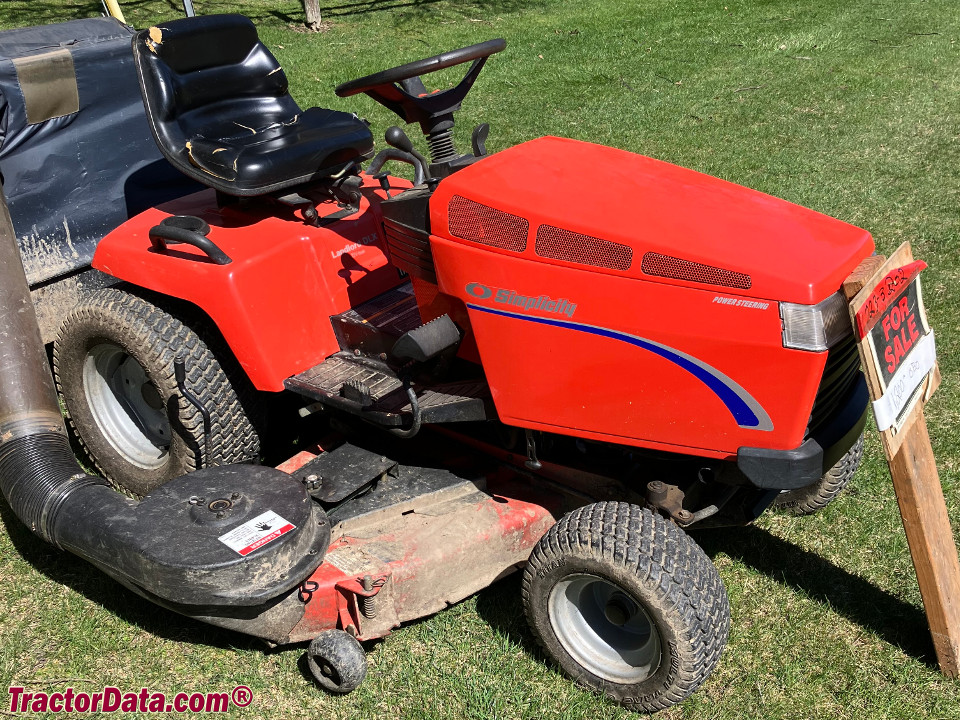

Simplicity Landlord 23 DLX

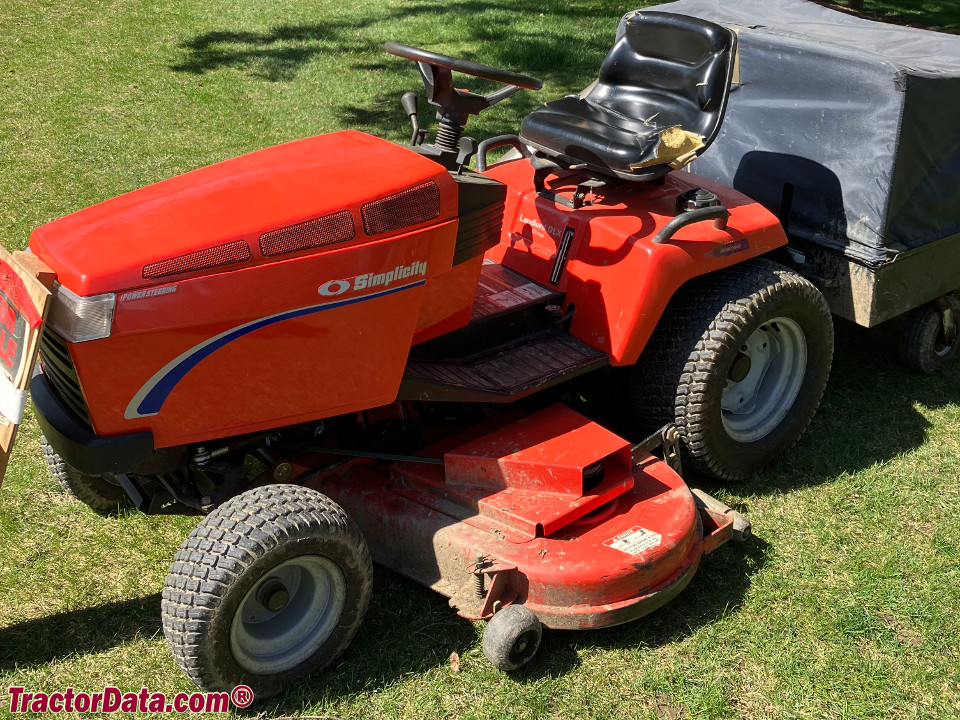

Simplicity Landlord 23 DLX
