Simplicity Legacy XL 33

The Simplicity Legacy XL 33 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 896 cc 54.68 ci engine. The listed engine power is Engine Detail — 896 cc / 54.68 ci (listed): 33 hp / 24.6 kW. Transmission: Tuff Torq K92. Drive type: 4x4 4WD.

Overview

	2017 - 2021 Legacy SeriesGarden tractor Legacy Series Garden tractor

Production
Manufacturer	Simplicity (a part of Briggs & Stratton)
Garden tractor
Original price was $11,699.00 in 2018

Simplicity Legacy XL 33 Engine
33HP Briggs & Stratton 896cc 2-cyl
Fuel tank	6 gal 22.7 L
Engine details ...

Simplicity Legacy XL 33 Transmission
hydrostatic
Transmission details ...

Mechanical
Drive	4x4 4WD
Differential lock	mechanical rear
Power steering
Wet disc brakes
Two-post folding ROPS.

Tractor hitch
Rear Type	I *Limited

Power Take-off (PTO)
Rear PTO	independent OptOptional
Rear PTO Type	540 (1.375)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Front tire	18.00x8.5-8
Rear tire	26.00x12.0-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	20
Battery CCA	500
Battery volts	12

Engine

Engine Detail — 896 cc / 54.68 ci

Manufacturer	Briggs & Stratton 54E177
Configuration	2-cylinder
horizontal-shaft V-Twin
Displacement	896 cc 54.68 ci
Bore/Stroke	3.37x3.07 inches 86 x 78 mm
Power	33 hp 24.6 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Tuff Torq K92

Transmission	Tuff Torq K92
Type	shaft-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Legacy XL 33 Tires
Lawn/turf front	18.00x8.5-8
Lawn/turf rear	26.00x12.0-12

Dimensions
Length	81 inches 205 cm
Width	45 inches 114 cm
Height	51 inches 129 cm
Front axle	Cast-iron

Attachments

Attachment overview
52" mid-mount mower deck
61" mid-mount mower deck
Snowblower
Blade
Front-end loader
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

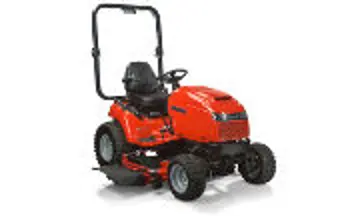

Simplicity Legacy XL 33 tractor photo
