Simplicity Prestige 23

The Simplicity Prestige 23 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 673 cc 41.1 ci engine. The listed engine power is Gasoline (gross): 23 hp / 17.2 kW. Transmission: Tuff Torq K71. Operating weight: 666 lbs 302 kg.

Overview

	2002 - 2006 Model year 2002-20042005-2006 Prestige SeriesGarden tractor Prestige Series Garden tractor

Production
Manufacturer	Simplicity (a part of Briggs & Stratton)
Garden tractor
Built in Port Washington, Wisconsin, USA
Original price was $6,575 in 2003

Variants
2823	similar Massey Ferguson model
1823H	similar AGCO model

Simplicity Prestige 23 Engine
23HP Kohler 673cc 2-cyl gasoline
Fuel tank	4 gal 15.1 L
Engine details ...

Simplicity Prestige 23 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Differential lock	mechanical rear
Steering	power
Open operator station.

Tractor hitch
Type	sleeve hitch OptOptional

Power Take-off (PTO)
Mid PTO	independent
Clutch	electro-magnetic

Dimensions & Tires
Wheelbase	53 inches 134 cm
Weight	666 lbs 302 kg
Front tire	16x6.5-8
Rear tire	23x10.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	15
Battery CCA	500
Battery volts	12

References
The Way To A Beautiful Lawn published in 2003, by Simplicity
The Way To A Beautiful Lawn published in 2004, by Simplicity
Product Guide 2003 published by Simplicity

Engine

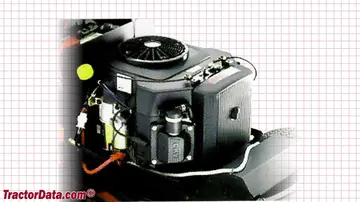

Engine Detail — 673 cc / 41.1 ci Gasoline

Manufacturer	Kohler CV23S
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	673 cc 41.1 ci
Bore/Stroke	3.15x2.64 inches 80 x 67 mm
Power (gross)	23 hp 17.2 kW
Compression	8.5:1
Starter	electric
Starter volts	12
Oil capacity	2 qts 1.9 L

Simplicity Prestige 23 Engine

Transmission

Transmission — Tuff Torq K71

Transmission	Tuff Torq K71
Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	4.9 qts 4.6 L

Dimensions

Simplicity Prestige 23 Tires
Lawn/turf front	16x6.5-8
Lawn/turf rear	23x10.50-12

Dimensions
Wheelbase	53 inches 134 cm
Length	75 inches 190 cm
Width	39 inches 99 cm
Height	50 inches 127 cm
Shipping weight	666 lbs 302 kg
Max rear axle	728 lbs 330 kg
Front axle	Cast-iron

Attachments

Attachment overview
50" mid-mount mower deck
54" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

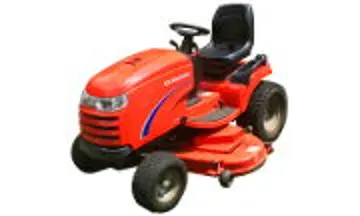

Simplicity Prestige 23
