Snapper 1650

The Snapper 1650 is a tractor produced by Snapper Lawn Tractors. It is equipped with a 588 cc 35.9 ci engine. The listed engine power is Gasoline (gross): 16 hp / 11.9 kW. Transmission: Eaton. Operating weight: 860 to 950 pounds.

Overview

	1979 - 1984 Garden tractor

Production
Manufacturer	Snapper
Garden tractor
Built in Fort Worth, Texas, USA

Variants
1650A	hitch and PTO
1650	similar Massey Ferguson model

Snapper 1650 Engine
16HP Kohler 588cc 1-cyl gasoline
Fuel tank	3.5 gal 13.2 L
Engine details ...

Snapper 1650 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.

Tractor hitch
Rear Type	0 OptOptional
Rear lift (at ends)	650 lbs 294 kg

Power Take-off (PTO)
Rear PTO	independent OptOptional
Rear PTO Type	2000
Front PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	47 inches 119 cm
Weight	860 to 950 pounds
Front tire	16x6.50-8
Rear tire	23x10.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Garden Tractors published in 1981, by Snapper
Service manual for 1600, 1650, 1855 Series (07005)
Operator's manual for Model 1650, 1650A (1-3016) published in 1979
How to get the most for your money. published in 1980, by Snapper
Discover the Difference published in 1983, by Snapper

Engine

Engine Detail — 588 cc / 35.9 ci Gasoline

Manufacturer	Kohler K341
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Displacement	588 cc 35.9 ci
Bore/Stroke	3.75x3.25 inches 95 x 83 mm
Power (gross)	16 hp 11.9 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Eaton

Transmission	Eaton
Type	belt-driven hydrostatic
Gears	infinite forward and reverse (2-range)

Dimensions

Snapper 1650 Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x10.50-12

Dimensions
Wheelbase	47 inches 119 cm
Length	70.75 inches 179 cm
Width	41.5 inches 105 cm
Height (steering wheel)	45.5 inches 115 cm
1650 Weight	860 lbs 390 kg
1650A Weight	950 lbs 430 kg
Front axle	Cast-iron

Attachments

Attachment overview
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

48" Mower deck
Type	mid-mount Snapper
	3-blade
Cutting width	48 inches 121 cm

Photos

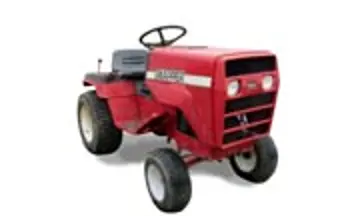

Snapper 1650A garden tractor.

Snapper 1650A garden tractor.

Snapper 1650A garden tractor.

Snapper 1650A operator station and controls.
