Snapper GT500 GT2354
The Snapper GT500 GT2354 is a tractor produced by Snapper Lawn Tractors. It is equipped with a 673 cc 41.1 ci engine. The rated power output is 23 hp 17.2 kW. Transmission: Tuff Torq K-71E.
Overview
 | 2006 - 2010
Model year 20062007-2010
Garden tractor |
|---|---|
2006 - 2010 | |
Model year 20062007-2010 | |
Garden tractor | |
2006 - 2010 | |
|---|---|
Model year 20062007-2010 | |
Garden tractor |
Production | |
|---|---|
Manufacturer | Snapper (a part of Briggs & Stratton) |
Garden tractor | |
Original price was $6,700 in 2006 | |
Variants | |
|---|---|
Prestige 23 | similar Simplicity model |
Snapper GT500 Engine | |
|---|---|
23HP Kohler 673cc 2-cyl gasoline | |
Fuel tank | 4 gal
15.1 L |
Engine details ...  | |
Snapper GT500 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | power assist |
Open operator station. | |
Photos | |
|---|---|
 | |
Snapper GT500 photos...  |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Front tire | 16x6.5-8 |
Rear tire | 23x10.5-12 |
Full dimensions and tires ...  | |
Snapper GT500 attachments | |
|---|---|
54" mid-mount mower deck | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 15 |
Battery volts | 12 |
Engine
| 2006 - 2010
Model year 20062007-2010
Garden tractor |
|---|---|
2006 - 2010 | |
Model year 20062007-2010 | |
Garden tractor | |
2006 - 2010 | |
|---|---|
Model year 20062007-2010 | |
Garden tractor |
Engine Detail | |
|---|---|
Kohler CV23S | |
gasoline | |
2-cylinder | |
air-cooled vertical-shaft V-Twin | |
Displacement | 673 cc
41.1 ci |
Bore/Stroke | 3.15x2.64 inches
80 x 67 mm |
Power (gross) | 23 hp
17.2 kW |
Starter volts | 12 |
Oil capacity | 2 qts
1.9 L |
Transmission
| 2006 - 2010
Model year 20062007-2010
Garden tractor |
|---|---|
2006 - 2010 | |
Model year 20062007-2010 | |
Garden tractor | |
2006 - 2010 | |
|---|---|
Model year 20062007-2010 | |
Garden tractor |
Transmission | |||
|---|---|---|---|
Transmission | Tuff Torq K-71E | ||
Type | belt-driven hydrostatic | ||
Gears | infinite forward and reverse | ||
Oil capacity | 4.5 qts
4.3 L | ||
Oil type | SAE 10W-30 | SAE 10W-30 | |
SAE 10W-30 | |||
Oil change | 250 h | ||
SAE 10W-30 |
|---|
Speeds | |
|---|---|
 |
Dimensions
| 2006 - 2010
Model year 20062007-2010
Garden tractor |
|---|---|
2006 - 2010 | |
Model year 20062007-2010 | |
Garden tractor | |
2006 - 2010 | |
|---|---|
Model year 20062007-2010 | |
Garden tractor |
Snapper GT500 Tires | |
|---|---|
Lawn/turf front | 16x6.5-8 |
Lawn/turf rear | 23x10.5-12 |
Dimensions | |
|---|---|
Front axle | Cast-iron |
Attachments
| 2006 - 2010
Model year 20062007-2010
Garden tractor |
|---|---|
2006 - 2010 | |
Model year 20062007-2010 | |
Garden tractor | |
2006 - 2010 | |
|---|---|
Model year 20062007-2010 | |
Garden tractor |
54" Mower deck | |
|---|---|
Type | mid-mount Snapper |
3-blade | |
Cutting width | 54 inches
137 cm |
Photos

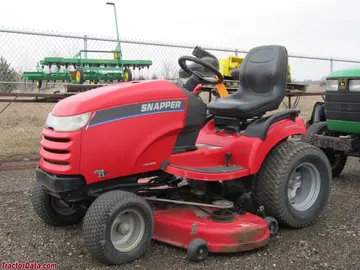

Snapper GT500 GT2354
