Snapper GT2048H
The Snapper GT2048H is a tractor produced by Snapper Lawn Tractors. It is equipped with a 624 cc 38.1 ci engine. The listed engine power is Gasoline (gross): 20 hp / 14.9 kW. Transmission: Eaton 11. Operating weight: 704 lbs 319 kg.
Engine Power
Gasoline (gross): 20 hp / 14.9 kW
Fuel & Capacities
5 gal
18.9 L
Transmission
Eaton 11
Operating Weight
704 lbs
319 kg
Overview
 | 1998
Garden tractorPower King built
Garden tractor
Power King built |
|---|
Production | |
|---|---|
Distributor | Snapper |
Manufacturer | Power King |
Garden tractor | |
Built in Beaver Dam, Wisconsin, USA | |
Variants | |
|---|---|
1220HV | similar Power King model |
Snapper GT2048H Engine | |
|---|---|
20HP Kohler 624cc 2-cyl gasoline | |
Fuel tank | 5 gal
18.9 L |
Engine details ...  | |
Snapper GT2048H Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Disc brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 48 inches
121 cm |
Weight | 704 lbs
319 kg |
Front tire | 16x6.5-8 |
Rear tire | 23x10.5-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | flywheel alternator |
Charging amps | 15 |
Battery CCA | 300 |
Battery volts | 12 |
References | |
|---|---|
 | |
Snapper Garden Tractors published in 1997 |
Engine
Engine Detail — 624 cc / 38.1 ci Gasoline
Manufacturer | Kohler CH20 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled horizontal-shaft V-Twin |
Displacement | 624 cc
38.1 ci |
Bore/Stroke | 3.03x2.64 inches
77 x 67 mm |
Power (gross) | 20 hp
14.9 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — Eaton 11
Transmission | Eaton 11 |
Type | shaft-driven hydrostatic |
Gears | infinite forward and reverse (2-range) |
Eaton 11 hydrostatic transmission with a Peerless 2500 two-speed transaxle. | |
 | |
Dimensions
Snapper GT2048H Tires | |
|---|---|
Lawn/turf front | 16x6.5-8 |
Lawn/turf rear | 23x10.5-12 |
Dimensions | |
|---|---|
Wheelbase | 48 inches
121 cm |
Length | 68 inches
172 cm |
Width | 41 inches
104 cm |
Height (steering wheel) | 42.5 inches
107 cm |
Weight | 704 lbs
319 kg |
Attachments
Attachment overview | |
|---|---|
48" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
48" Mower deck | |
|---|---|
Type | mid-mount Snapper |
3-blade | |
Cutting width | 48 inches
121 cm |
Photos

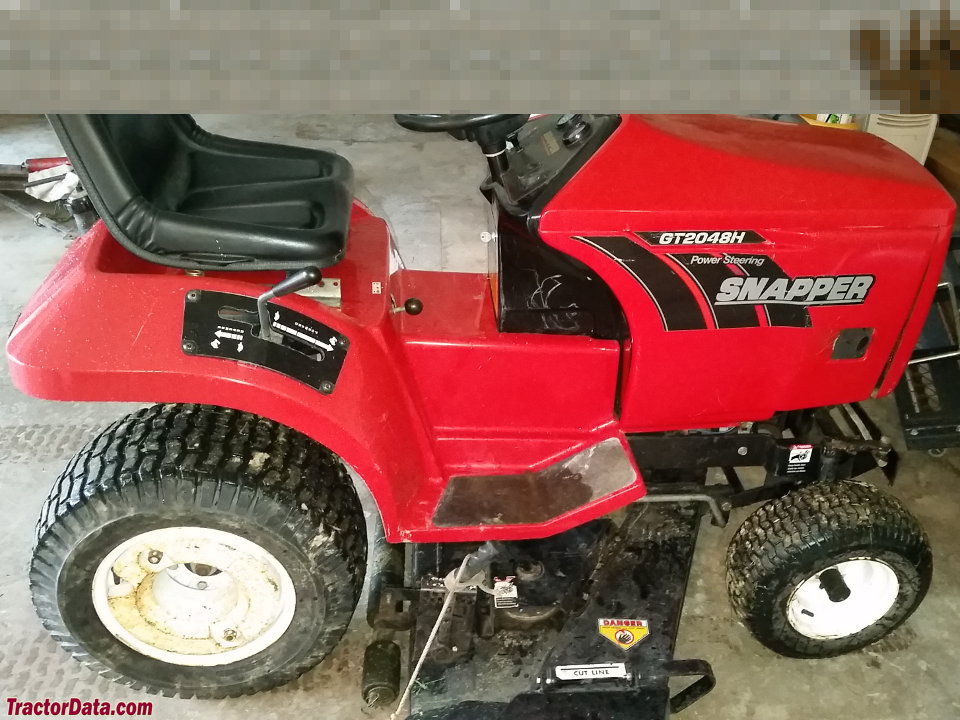

Snapper GT2048H
Snapper GT2048H
Recommended Implements & Sizing Guide
Engineering recommendations for Snapper Lawn Tractors Snapper GT2048H based on its 20 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Snapper Lawn Tractors Snapper GT2048H.
Estimated Continuous Field Runtime: 4.8 hrs
Approximately 4.8 hours of continuous field operation at ~75% rated power on a full tank (5 gal / 18.9 L).
Estimated 75% Load Fuel Burn~1 gal/hr (3.9 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Snapper Lawn Tractors Snapper GT2048H Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Snapper Lawn Tractors Snapper GT2048H.
Converted Equivalents:
Horsepower (HP)20 hp
Kilowatts (kW)14.9 kW
Metric Horsepower (PS / CV)20.3 PS
