Snapper LT2342
The Snapper LT2342 is a tractor produced by Snapper Lawn Tractors. It is equipped with a 724 cc 44.18 ci engine. The rated power output is 23 hp 17.2 kW. Transmission: Hydro-Gear T2. Operating weight: 532 lbs 241 kg.
Overview
 | 2010 - 2012
LT125 SeriesLawn tractor |
|---|---|
2010 - 2012 | |
LT125 Series | |
Lawn tractor | |
2010 - 2012 | |
|---|---|
LT125 Series | |
Lawn tractor |
Production | |
|---|---|
Manufacturer | Snapper (a part of Briggs & Stratton) |
Lawn tractor | |
Original price was $1999 in 2011 | |
Snapper LT2342 Engine | |
|---|---|
23HP Briggs & Stratton 724cc 2-cyl gasoline | |
Fuel tank | 3.5 gal
13.2 L |
Engine details ...  | |
Snapper LT2342 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Open operator station. | |
Photos | |
|---|---|
 | |
Snapper LT2342 photos...  |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 50 inches
127 cm |
Weight | 532 lbs
241 kg |
Front tire | 15x6.00-6 |
Rear tire | 20x10.00-8 |
Full dimensions and tires ...  | |
Snapper LT2342 attachments | |
|---|---|
42" mid-mount mower deck | |
snowblower | |
blade | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Battery CCA | 230 |
Battery volts | 12 |
Engine
| 2010 - 2012
LT125 SeriesLawn tractor |
|---|---|
2010 - 2012 | |
LT125 Series | |
Lawn tractor | |
2010 - 2012 | |
|---|---|
LT125 Series | |
Lawn tractor |
Engine Detail | |
|---|---|
Briggs & Stratton 44L777 | |
gasoline | |
2-cylinder | |
air-cooled vertical-shaft V-Twin | |
Displacement | 724 cc
44.18 ci |
Bore/Stroke | 3.12x2.89 inches
79 x 73 mm |
Power (gross) | 23 hp
17.2 kW |
Starter | electric key start |
Starter volts | 12 |
Snapper LT2342 Engine | |
|---|---|
 | |
Image courtesy of Lesmono |
Transmission
| 2010 - 2012
LT125 SeriesLawn tractor |
|---|---|
2010 - 2012 | |
LT125 Series | |
Lawn tractor | |
2010 - 2012 | |
|---|---|
LT125 Series | |
Lawn tractor |
Transmission | |
|---|---|
Transmission | Hydro-Gear T2 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
Speeds | |
|---|---|
 |
Dimensions
| 2010 - 2012
LT125 SeriesLawn tractor |
|---|---|
2010 - 2012 | |
LT125 Series | |
Lawn tractor | |
2010 - 2012 | |
|---|---|
LT125 Series | |
Lawn tractor |
Snapper LT2342 Tires | |
|---|---|
Lawn/turf front | 15x6.00-6 |
Lawn/turf rear | 20x10.00-8 |
Dimensions | |
|---|---|
Wheelbase | 50 inches
127 cm |
Length | 71 inches
180 cm |
Width | 52 inches
132 cm |
Height | 42 inches
106 cm |
Weight | 532 lbs
241 kg |
Front axle | Cast iron |
Attachments
| 2010 - 2012
LT125 SeriesLawn tractor |
|---|---|
2010 - 2012 | |
LT125 Series | |
Lawn tractor | |
2010 - 2012 | |
|---|---|
LT125 Series | |
Lawn tractor |
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
Snowblower | |
Blade |
42" Mower deck | |
|---|---|
Type | mid-mount Snapper |
manual lift | |
Cutting width | 42 inches
106 cm |
Cut height | 1.5 to 4 inch
3 to 10 cm |
Cut positions | 7 |
Photos

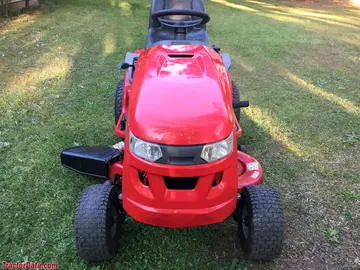

Snapper LT2342
Snapper LT2342
Snapper LT2342
