Stanley 525607
The Stanley 525607 is a tractor produced by Stanley Lawn Tractors. The listed engine power is Gasoline (gross): 22 hp / 16.4 kW. Transmission: Peerless 2000.
Engine Power
Gasoline (gross): 22 hp / 16.4 kW
Fuel & Capacities
Gasoline
Transmission
Peerless 2000
Overview
 | 2001 - 2002
Lawn tractorMurray built
Lawn tractor
Murray built |
|---|
Production | |
|---|---|
Distributor | Stanley |
Manufacturer | Murray |
Lawn tractor | |
Stanley 525607 Engine | |
|---|---|
22HP Tecumseh 2-cyl gasoline | |
Engine details ...  |
Stanley 525607 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Links | |
|---|---|
Stanley 22HP mower recall: Recall notice for the Murray-Stanley 525607. |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — Gasoline
Manufacturer | Tecumseh |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft |
Power (gross) | 22 hp
16.4 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — Peerless 2000
Transmission | Peerless 2000 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
Dimensions
Stanley 525607 Tires |
|---|
Dimensions |
|---|
Attachments
52" Mower deck | |
|---|---|
Type | mid-mount Stanley |
3-blade | |
Cutting width | 52 inches
132 cm |
Photos

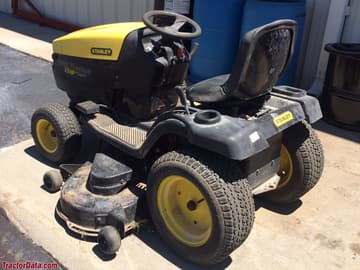

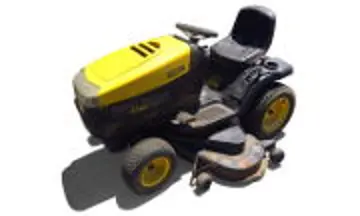

Stanley 525607
Stanley 525607
Recommended Implements & Sizing Guide
Engineering recommendations for Stanley Lawn Tractors Stanley 525607 based on its 22 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Stanley Lawn Tractors Stanley 525607.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Stanley Lawn Tractors Stanley 525607 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Stanley Lawn Tractors Stanley 525607.
Converted Equivalents:
Horsepower (HP)22 hp
Kilowatts (kW)16.4 kW
Metric Horsepower (PS / CV)22.3 PS
Direct Competitor Comparison
Compare Stanley 525607 against same-era industry alternatives in the same horsepower class.
Current Model
Stanley Lawn Tractors
Stanley 525607
Engine Power:Gasoline (gross): 22 hp / 16.4 kW
★ Baseline Reference
