Stanley 54ZS
The Stanley 54ZS is a tractor produced by Stanley Lawn Tractors. It is equipped with a 726 cc 44.3 ci engine. The listed engine power is Gasoline (gross): 23 hp / 17.2 kW. Transmission: Peerless 2100. Operating weight: 1000 lbs 453 kg.
Overview
 | 2011 - 2015
Zero-turn mowerGXi Outdoor Power built
Zero-turn mower
GXi Outdoor Power built |
|---|
Production | |
|---|---|
Distributor | Stanley |
Manufacturer | GXi Outdoor Power |
Zero-turn mower | |
Stanley 54ZS Engine | |
|---|---|
23HP Kawasaki 726cc 2-cyl gasoline | |
Fuel tank | 7.5 gal
28.4 L |
Engine details ...  | |
Stanley 54ZS Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Two-post folding ROPS. |
Dimensions & Tires | |
|---|---|
Weight | 1000 lbs
453 kg |
Front tire | 15x6 |
Rear tire | 22x10 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 726 cc / 44.3 ci Gasoline
Manufacturer | Kawasaki FR691V |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft |
Displacement | 726 cc
44.3 ci |
Bore/Stroke | 3.01x2.992 inches
76 x 76 mm |
Power (gross) | 23 hp
17.2 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — Peerless 2100
Transmission | Peerless 2100 |
Type | hydrostatic |
Gears | infinite forward and reverse |
Dimensions
Stanley 54ZS Tires | |
|---|---|
Lawn/turf front | 15x6 |
Lawn/turf rear | 22x10 |
Dimensions | |
|---|---|
Length | 83 inches
210 cm |
Height | 72 inches
182 cm |
Weight | 1000 lbs
453 kg |
Attachments
54" Mower deck | |
|---|---|
Type | mid-mount Stanley |
2-blade | |
Cutting width | 54 inches
137 cm |
Cut height | 1.5 to 5 inch
3 to 12 cm |
Cut positions | 8 |
Photos

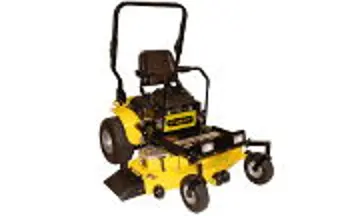

Stanley 54ZS tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Stanley Lawn Tractors Stanley 54ZS based on its 23 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Stanley Lawn Tractors Stanley 54ZS.
Estimated Continuous Field Runtime: 6.3 hrs
Approximately 6.3 hours of continuous field operation at ~75% rated power on a full tank (7.5 gal / 28.4 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Stanley Lawn Tractors Stanley 54ZS Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Stanley Lawn Tractors Stanley 54ZS.
Converted Equivalents:
Direct Competitor Comparison
Compare Stanley 54ZS against same-era industry alternatives in the same horsepower class.
Stanley 54ZS
