Stanley 62ZS
The Stanley 62ZS is a tractor produced by Stanley Lawn Tractors. It is equipped with a 852 cc 52 ci engine. The listed engine power is Gasoline (gross): 27 hp / 20.1 kW. Transmission: Peerless 2100. Operating weight: 1000 lbs 453 kg.
Overview
 | 2011 - 2015
Zero-turn mowerGXi Outdoor Power built
Zero-turn mower
GXi Outdoor Power built |
|---|
Production | |
|---|---|
Distributor | Stanley |
Manufacturer | GXi Outdoor Power |
Zero-turn mower | |
Stanley 62ZS Engine | |
|---|---|
27HP Kawasaki 852cc 2-cyl gasoline | |
Fuel tank | 7.5 gal
28.4 L |
Engine details ...  | |
Stanley 62ZS Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Two-post folding ROPS. |
Dimensions & Tires | |
|---|---|
Weight | 1000 lbs
453 kg |
Front tire | 15x6 |
Rear tire | 22x10 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 852 cc / 52 ci Gasoline
Manufacturer | Kawasaki FX850V |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Displacement | 852 cc
52 ci |
Bore/Stroke | 3.33x2.99 inches
85 x 76 mm |
Power (gross) | 27 hp
20.1 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — Peerless 2100
Transmission | Peerless 2100 |
Type | hydrostatic |
Gears | infinite forward and reverse |
Dimensions
Stanley 62ZS Tires | |
|---|---|
Lawn/turf front | 15x6 |
Lawn/turf rear | 22x10 |
Dimensions | |
|---|---|
Length | 83 inches
210 cm |
Height | 72 inches
182 cm |
Weight | 1000 lbs
453 kg |
Attachments
62" Mower deck | |
|---|---|
Type | mid-mount Stanley |
2-blade | |
Cutting width | 62 inches
157 cm |
Cut height | 1.5 to 5 inch
3 to 12 cm |
Cut positions | 8 |
Photos

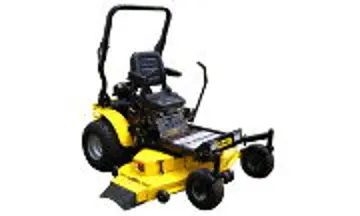

Stanley 62ZS tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Stanley Lawn Tractors Stanley 62ZS based on its 27 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Stanley Lawn Tractors Stanley 62ZS.
Estimated Continuous Field Runtime: 5.3 hrs
Approximately 5.3 hours of continuous field operation at ~75% rated power on a full tank (7.5 gal / 28.4 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Stanley Lawn Tractors Stanley 62ZS Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Stanley Lawn Tractors Stanley 62ZS.
Converted Equivalents:
Direct Competitor Comparison
Compare Stanley 62ZS against same-era industry alternatives in the same horsepower class.
Stanley 62ZS
