Steiger 3300

The Steiger 3300 is a tractor produced by Steiger. It is equipped with a 567.4 ci 9.3 L engine. The rated power output is 350 hp 261.0 kW. Transmission: 16 forward and 8 reverse. Operating weight: 31500 lbs 14288 kg.

Overview

	1963 - 1969 Barn SeriesFour-wheel Drive (4WD) tractor
1963 - 1969
Barn Series
Four-wheel Drive (4WD) tractor

Production
Manufacturer	Steiger
Four-wheel Drive (4WD) tractor
Built in Red Lake Falls, Minnesota, USA

Steiger 3300 Engine
Detroit Diesel 9.3L 8-cyl diesel
Fuel tank	165 gal 624.5 L
Engine details ...

Steiger 3300 Transmission
16-speed
Transmission details ...

Steiger 3300 Power
Engine	350 hp 261.0 kW

Mechanical
Four-wheel drive
Final drives	planetary
Articulated power steering
Drum brakes
Open operator station. Cab available.

Hydraulics
Type	open center

Dimensions & Tires
Wheelbase	144 inches 365 cm
Weight	31500 lbs 14288 kg
Front tire	24.5-32
Rear tire	24.5-32
Full dimensions and tires ...

References
Red 4WD Tractors: 1957-2017 by Lee Klancher
Red Book 1969 published by Implement & Tractor
Ultimate Tractor Power: Articulated Tractors of the World, Volume 2 by Peter Simpson*
Steiger Identification Guide: 1969-1998 published by Case IH
All-Wheel Drive Agricultural Tractors published in 1968, by Steiger
Extra Heavy-Duty All-Wheel Drive Agricultural Tractors published in 1969, by Steiger
*Publication contains known errors.

Engine

Engine Detail — 567.4 ci / 9.3 L Diesel

Manufacturer	Detroit Diesel 8V71N
Fuel Type	Diesel
Configuration	8-cylinder, liquid-cooled
Displacement	567.4 ci 9.3 L
Bore/Stroke	4.25x5.00 inches 108 x 127 mm
Power	350 hp 261.0 kW
Rated RPM	2300
Starter type	electric

Transmission

Transmission — 16 forward and 8 reverse

Gears	16 forward and 8 reverse
Clutch	394mm discs

Dimensions

Steiger 3300 Tires
Ag front	24.5-32
Ag rear	24.5-32

Dimensions
Wheelbase	144 inches 365 cm
Height	110 inches 279 cm
Weight	31500 lbs 14288 kg
Front tread	96 inches 243 cm
Rear tread	96 inches 243 cm

Photos

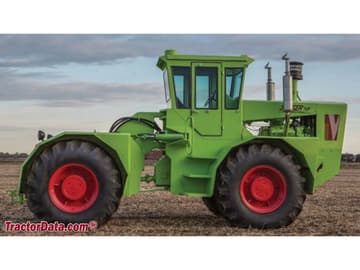

Steiger 3300 four-wheel drive tractor.
