Steiger Bearcat III ST-220

The Steiger Bearcat III ST-220 is a tractor produced by Steiger. It is equipped with a 855 ci 14.0 L engine. The rated power output is 220 hp 164.1 kW. Transmission: Spicer SST 1010. Operating weight: 21400 to 24135 pounds.

Overview

	1976 - 1977 III SeriesFour-wheel Drive (4WD) tractor
1976 - 1977
III Series
Four-wheel Drive (4WD) tractor

Production
Manufacturer	Steiger
Four-wheel Drive (4WD) tractor
Built in Fargo, North Dakota, USA
Original price was $48,000 in 1977

Steiger Bearcat III ST-220 Engine
Cummins 14.0L 6-cyl diesel
Fuel tank	267 gal 1010.6 L
Engine details ...

Steiger Bearcat III ST-220 Transmission
20-speed
Transmission details ...

Steiger Bearcat III ST-220 Power
Engine	220 hp 164.1 kW
Drawbar (claimed)	175 hp 130.5 kW

Mechanical
Four-wheel drive
Final drives	outboard planetary
Articulated power steering
Hydraulic disc brakes
Safari Cab standard.

Hydraulics
Type	open center
Pressure	2250 psi 155.1 bar
Valves	3
Pump flow	27.2 gpm 103.0 lpm
SCV flow	20 gpm 75.7 lpm

Tractor hitch
Rear Type	III OptOptional
Rear lift	9500 lbs 4309 kg

Dimensions & Tires
Wheelbase	128 inches 325 cm
Weight	21400 to 24135 pounds
Front tire	23.1-30
Rear tire	23.1-30
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	90
Batteries	2
Battery volts	12
Battery AH	208
Battery Group	8D

References
Operator's Manual Bearcat III ST220 (37-047)
Series III published in 1976, by Steiger

Engine

Engine Detail — 855 ci / 14.0 L Diesel

Manufacturer	Cummins N-855-C220
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled inline
Displacement	855 ci 14.0 L
Bore/Stroke	5.50x6.00 inches 140 x 152 mm
Power	220 hp 164.1 kW
Compression	15.8:1
Rated RPM	2100
Torque	644 lb-ft 873.3 Nm
Torque RPM	1500
Starter	electric
Starter volts	12
Oil capacity	44 qts 41.6 L
Coolant capacity	52.8 qts 50.0 L

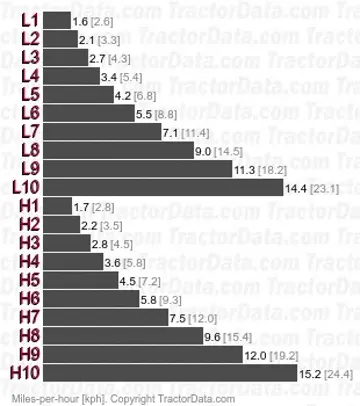

Transmission

Transmission — Spicer SST 1010

Transmission	Spicer SST 1010
Gears	20 forward and 4 reverse
Clutch	394mm cerametallic disc
Oil capacity	60 qts 56.8 L
With 23.1-30 tires.

Dimensions

Steiger Bearcat III ST-220 Tires
Ag front	23.1-30
Ag rear	23.1-30
Ag front	24.5-32
	30.5-32
	18.4-34
	20.8-34
	23.1-34
	18.4-38
	20.8-38
Ag rear	24.5-32
	30.5-32
	18.4-34
	20.8-34
	23.1-34
	18.4-38
	20.8-38

Dimensions
Wheelbase	128 inches 325 cm
Length	252 inches 640 cm
Width	95 inches*Width at fenders 241 cm

Steiger Bearcat III ST-220 Weight
Shipping	21400 lbs (no wheels) 9707 kg
	24135 lbs 10947 kg
Max capacity	30000 lbs 13608 kg

Steiger Bearcat III ST-220 Height
Hood	92.8 inches 235 cm
Cab	132.8 inches 337 cm
Exhaust	153.8 inches 390 cm

Photos

Steiger Bearcat III ST-220
