Steiner 415 75-60010

The Steiner 415 75-60010 is a tractor produced by Steiner Lawn Tractors. It is equipped with a 671 cc 41 ci engine. The listed engine power is Gasoline (listed): 23 hp / 17.2 kW. Transmission: infinite forward and reverse (2-range). Operating weight: 950 lbs 430 kg.

Engine Power

Gasoline (listed): 23 hp / 17.2 kW

Fuel & Capacities

5 gal 18.9 L

Transmission

infinite forward and reverse (2-range)

Operating Weight

950 lbs 430 kg

Overview

	2002 - 2006 Garden tractor

Production
Manufacturer	Steiner
Garden tractor
Built in Johnson Creek, Wisconsin, USA

Steiner 415 Engine
23HP Kohler 671cc 2-cyl gasoline
Fuel tank	5 gal 18.9 L
Engine details ...

Steiner 415 Transmission
hydrostatic
Transmission details ...

Mechanical
Four-wheel drive
Steering	hydraulic power
Dry disc brakes

Tractor hitch
Type	Steiner Quick-Hitch

Dimensions & Tires
Wheelbase	39 inches 99 cm
Weight	950 lbs 430 kg
Front tire	20x10.00-8
Rear tire	20x10.00-8
Full dimensions and tires ...

Electrical
Charging amps	15
Battery volts	12
Battery Group	UIL-4

Engine

Engine Detail — 671 cc / 41 ci Gasoline

Manufacturer	Kohler CH23QS
Fuel Type	Gasoline
Configuration	2-cylinder, liquid-cooled
Displacement	671 cc 41 ci
Bore/Stroke	3.15x2.64 inches 80 x 67 mm
Power	23 hp 17.2 kW
Starter	electric
Starter volts	12

Transmission

Transmission — infinite forward and reverse (2-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (2-range)
Sauer/Dan Foss hydrostatic transmission with dual-speed Peerless 2500 transaxles.

Dimensions

Steiner 415 Tires
Ag front	21x11.00-8
Ag rear	21x11.00-8
Lawn/turf front	20x10.00-8
Lawn/turf rear	20x10.00-8

Dimensions
Wheelbase	39 inches 99 cm
Length	69 inches 175 cm
Width	43.5 inches 110 cm
Height	47 inches 119 cm
Weight	950 lbs 430 kg

Photos

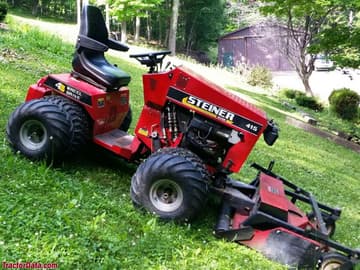

Steiner 415 with front-mount mower.

Steiner 415 with front bucket.

Steiner 415 rear view.

Recommended Implements & Sizing Guide

Engineering recommendations for Steiner Lawn Tractors Steiner 415 75-60010 based on its 23 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	4 ft (48 in)1.2 m	Light Duty	Pasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep	42 to 48 in105 - 120 cm	Light Duty	Covers compact tractor tire width.
Disc HarrowSecondary Tillage	5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)	Light Duty	Small acreage soil break-up and secondary aeration.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Steiner Lawn Tractors Steiner 415 75-60010.

Estimated Continuous Field Runtime: 4.2 hrs

Approximately 4.2 hours of continuous field operation at ~75% rated power on a full tank (5 gal / 18.9 L).

Estimated 75% Load Fuel Burn~1.2 gal/hr (4.5 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Steiner Lawn Tractors Steiner 415 75-60010 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Steiner Lawn Tractors Steiner 415 75-60010.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)23 hp

Kilowatts (kW)17.2 kW

Metric Horsepower (PS / CV)23.3 PS
