Steyr 1400

The Steyr 1400 is a tractor produced by Steyr. It is equipped with a 402.2 ci 6.6 L engine. The rated power output is 140 hp 104.4 kW. Transmission: synchro. Operating weight: 12480 lbs 5660 kg.

Engine Power
140 hp 104.4 kW
Fuel & Capacities
64.8 gal 245.3 L
Transmission
synchro
Operating Weight
12480 lbs 5660 kg

Steyr 1400 Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

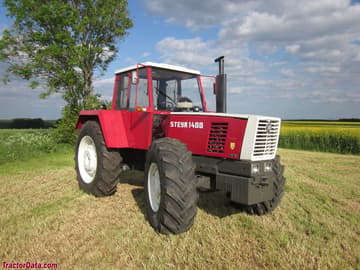

Steyr 1400 tractor photo
1974 - 1976
1974 - 1976
Production
Manufacturer
Steyr
Built in Saint Valentin, Austria
Steyr 1400 Engine
Steyr 6.6L 6-cyl diesel
Fuel tank
64.8 gal 245.3 L
Engine details ...
Steyr 1400 Transmission
12-speed
Transmission details ...
Steyr 1400 Power
Engine
140 hp 104.4 kW
Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Cab standard. Air-conditioning optional.
Hydraulics
Total flow
10.8 gpm 40.9 lpm
Tractor hitch
Rear lift
9966.6 lbs 4520 kg
Power Take-off (PTO)
Rear PTO Type
1000
Dimensions & Tires
Wheelbase
106.3 inches 270 cm
Weight
12480 lbs 5660 kg
Front tire
18.4-26
Rear tire
18.4-38
Full dimensions and tires ...

Engine

Engine Detail — 402.2 ci / 6.6 L Diesel

Manufacturer
Steyr WD 612.85
Fuel Type
Diesel
Configuration
6-cylinder, liquid-cooled
Displacement
402.2 ci 6.6 L
Bore/Stroke
4.25x4.72 inches 108 x 120 mm
Power
140 hp 104.4 kW
Rated RPM
2200
Torque
398 lb-ft 539.7 Nm
Torque RPM
1500

Transmission

Transmission — synchro

Transmission
synchro
Gears
12 forward and 4 reverse

Dimensions

Steyr 1400 Tires
Ag front
18.4-26
Ag rear
18.4-38
Dimensions
Wheelbase
106.3 inches 270 cm
Length
193.3 inches 490 cm
Height
108.3 inches 275 cm
Weight
12480 lbs 5660 kg

Photos

Steyr 1400

Steyr 1400

Steyr 1400

Steyr 1400

Steyr 1400

Steyr 1400
