Steyr 9115
The Steyr 9115 is a tractor produced by Steyr. It is equipped with a 402.5 ci 6.6 L engine. The rated power output is 115 hp 85.8 kW. Transmission: Power-4. Operating weight: 11563 lbs 5244 kg.
Engine Power
115 hp
85.8 kW
Fuel & Capacities
58.1 gal
219.9 L
Transmission
Power-4
Operating Weight
11563 lbs
5244 kg
Steyr 9115 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1995 - 2003
9100 SeriesRow-Crop tractor |
|---|---|
1995 - 2003 | |
9100 Series | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | Steyr |
Row-Crop tractor | |
Variants | |
|---|---|
CS 120 | similar CaseIH model |
Steyr 9115 Engine | |
|---|---|
Sisu 6.6L 6-cyl diesel | |
Fuel tank | 58.1 gal
219.9 L |
79.3 gal*Total capacity with optional 80L fuel tank.
300.2 L | |
Engine details ...  | |
Steyr 9115 Power | |
|---|---|
Engine | 115 hp
85.8 kW |
PTO (claimed) | 101.9 hp
76.0 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Disc brakes | |
Cab standard. |
Hydraulics | |
|---|---|
Total flow | 21.1 gpm
79.9 lpm |
30.4 gpm
115.1 lpm | |
Tractor hitch | |
|---|---|
Rear Type | III/II |
Rear lift | 19470 lbs
8831 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 (1.375) |
1000 (1.75)OptOptional | |
Engine RPM | 540@2210 |
540E@1608 | |
1000@2200 | |
1000E@1600 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 110.1 inches
279 cm |
Weight | 11563 lbs
5244 kg |
Front tire | 16.9R24 |
Rear tire | 18.4R38 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Steyr 9100 published in 1995 |
Engine
Engine Detail — 402.5 ci / 6.6 L Diesel
Manufacturer | Sisu 620.84 |
Configuration | turbocharged diesel, 6-cylinder, liquid-cooled |
Displacement | 402.5 ci
6.6 L |
Bore/Stroke | 4.25x4.72 inches
108 x 120 mm |
Power | 115 hp
85.8 kW |
Rated RPM | 2300 |
Torque | 338 lb-ft
458.3 Nm |
Torque RPM | 1500 |
Transmission
Transmission options | |
|---|---|

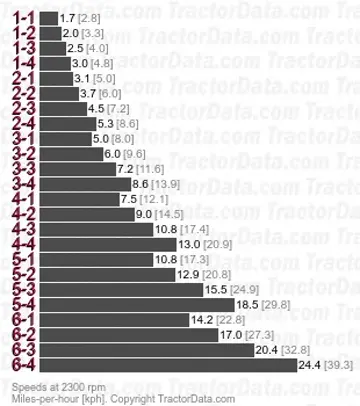

24-speed synchronized | |
40-speed creeper |
Transmission — Power-4
Transmission | Power-4 |
Type | synchronized |
Gears | 24 forward and reverse |
With 20.8R38 rear tires. | |
 | |
Type | creeper |
Gears | 40 forward and reverse |
Dimensions
Steyr 9115 Tires | |
|---|---|
Ag front | 16.9R24 |
Ag rear | 18.4R38 |
Dimensions | |
|---|---|
Wheelbase | 110.1 inches
279 cm |
Length | 185.8 inches
471 cm |
Width | 92.5 inches
234 cm |
Height | 114.2 inches
290 cm |
Weight | 11563 lbs
5244 kg |
Max weight | 19842 lbs
9000 kg |
Front tread | 70.9 inches
180 cm |
Rear tread | 70.9 inches
180 cm |
