Steyr 4135 Profi

The Steyr 4135 Profi is a tractor produced by Steyr. It is equipped with a 273.7 ci 4.5 L engine. The listed engine power is Diesel (gross): 135 hp / 100.7 kW. Transmission: 17 forward and 16 reverse. Operating weight: 10781 lbs 4890 kg.

Engine Power
Diesel (gross): 135 hp / 100.7 kW
Fuel & Capacities
52.3 gal 198.0 L
Transmission
17 forward and 16 reverse
Operating Weight
10781 lbs 4890 kg

Overview

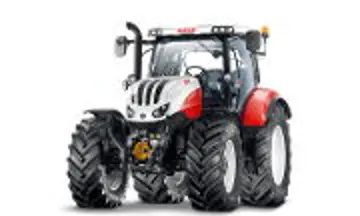

Steyr 4135 Profi tractor photo
2016 - Utility tractor
2016 -
Utility tractor
Production
Manufacturer
Steyr
Utility tractor
Variants
4135 Profi
premium
4135 Classic
economy
4135 CVT
continuously-variable transmission
Steyr 4135 Profi Engine
Iveco 4.5L 4-cyl diesel
Fuel tank
52.3 gal 198.0 L
60.8 galOptOptional 230.1 L
Exhaust fluid (DEF)
10.4 gal 39.4 L
Engine details ...
Steyr 4135 Profi Power
Engine (gross)
135 hp 100.7 kW
Engine (max)
169 hp 126.0 kW
Mechanical
Four-wheel drive
Power steering
Hydraulic wet disc brakes
Trailer brakes
pneumatic OptOptional
Cab standard with air-conditioning. Optional active suspension.
Hydraulics
Type
closed center load sensing
Rear valves
4 (max)
Mid valves
2 (max)
Pump flow
29.85 gpm 113.0 lpm
Tractor hitch
Rear Type
III/II
Rear lift
17337 lbs 7864 kg
Front lift
6834 lbs 3099 kg
Power Take-off (PTO)
Rear PTO
independent
Clutch
electro-hydraulic
Rear PTO Type
540/540E/1000
540E/1000:1000E
Engine RPM
540@1969
540E@1546
1000@1893
1000E@1621
Front PTO
independent OptOptional
Front PTO Type
1000
Engine RPM
1000@1895
Dimensions & Tires
Wheelbase
104.2 inches 264 cm
105.7 inches*With suspended front axle. 268 cm
Weight
10781 lbs 4890 kg
Front tire
480/65R28
Rear tire
600/65R38
Full dimensions and tires ...
Electrical
Ground
electric
Charging system
alternator

Engine

Engine Detail — 273.7 ci / 4.5 L Diesel

Manufacturer
Iveco
Configuration
turbocharged intercooled diesel, 4-cylinder 16-valve, liquid-cooled
Displacement
273.7 ci 4.5 L
Bore/Stroke
4.09x5.20 inches 104 x 132 mm
Emissions
Stage IV
Rated Power (gross)
135 hp 100.7 kW
Maximum Power (gross)
169 hp 126.0 kW
Rated RPM
2200
Torque RPM
1500
Starter type
negative

Transmission

Transmission options
16-speed four-speed power shift
32-speed creeper
17-speed

Transmission — 16 forward and reverse four-speed power shift

Type
four-speed power shift
Gears
16 forward and reverse
Transmission
Type
creeper
Gears
32 forward and reverse

Transmission — 17 forward and 16 reverse

Gears
17 forward and 16 reverse

Dimensions

Steyr 4135 Profi Tires
Ag front
480/65R28
Ag rear
600/65R38
Dimensions
Wheelbase
104.2 inches 264 cm
105.7 inches*With suspended front axle. 268 cm
Length
202.2 inches 513 cm
204.9 inches*With suspended front axle. 520 cm
Width
97.2 inches 246 cm
Height
118 inches 299 cm
Shipping weight
10781 lbs 4890 kg
Max weight
20944 lbs 9500 kg
Front tread
62.2 to 88.8 inches 157 to 225 cm
Rear tread
56.3 to 84 inches 143 to 213 cm

Photos

Steyr 4135 Profi tractor photo

Steyr 4135 Profi tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Steyr 4135 Profi based on its 135 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)Heavy DutyHeavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing
10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼Heavy DutyWide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep
90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机Commercial / Field ScaleDeep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage
15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙Commercial / Field ScaleWide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage
5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机Heavy DutyHigh density baling; requires minimum 85 PTO HP.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Steyr 4135 Profi.

Estimated Continuous Field Runtime: 7.5 hrs

Approximately 7.5 hours of continuous field operation at ~75% rated power on a full tank (52.3 gal / 198 L).

Estimated 75% Load Fuel Burn~7 gal/hr (26.6 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Steyr 4135 Profi Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Steyr 4135 Profi.

Converted Equivalents:

Horsepower (HP)135 hp
Kilowatts (kW)100.7 kW
Metric Horsepower (PS / CV)136.9 PS

Direct Competitor Comparison

Compare Steyr 4135 Profi against same-era industry alternatives in the same horsepower class.

Current Model
Steyr

Steyr 4135 Profi

Engine Power:Diesel (gross): 135 hp / 100.7 kW
★ Baseline Reference
International HarvesterMarket Competitor

International Harvester 1246

Engine Power:122
Production Years:1972 - 1980
View Full Specs→
FendtMarket Competitor

Fendt 412 Vario

Engine Power:122
Production Years:2006 - 2012
View Full Specs→
FordMarket Competitor

Ford 8030

Engine Power:122
Production Years:1992 - 1997
View Full Specs→
New HollandMarket Competitor

New Holland 8030

Engine Power:122
Production Years:2007 - 2017
View Full Specs→
