Steyr 9105
The Steyr 9105 is a tractor produced by Steyr. It is equipped with a 268.3 ci 4.4 L engine. The listed engine power is Diesel (listed): 105 hp / 78.3 kW. Transmission: Power-4. Operating weight: 11056 lbs 5015 kg.
Engine Power
Diesel (listed): 105 hp / 78.3 kW
Fuel & Capacities
58.1 gal
219.9 L
Transmission
Power-4
Operating Weight
11056 lbs
5015 kg
Overview
 | 1995 - 2003
9100 SeriesRow-Crop tractor
9100 Series
Row-Crop tractor |
|---|
Production | |
|---|---|
Manufacturer | Steyr |
Row-Crop tractor | |
Variants | |
|---|---|
CS 110 | similar CaseIH model |
Steyr 9105 Engine | |
|---|---|
Sisu 4.4L 4-cyl diesel | |
Fuel tank | 58.1 gal
219.9 L |
79.3 gal*Total capacity with optional 80L fuel tank.
300.2 L | |
Engine details ...  | |
Steyr 9105 Power | |
|---|---|
Engine | 105 hp
78.3 kW |
PTO (claimed) | 92.5 hp
69.0 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Disc brakes | |
Cab standard. |
Hydraulics | |
|---|---|
Total flow | 21.1 gpm
79.9 lpm |
30.4 gpm
115.1 lpm | |
Tractor hitch | |
|---|---|
Rear Type | III/II |
Rear lift | 19470 lbs
8831 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 (1.375) |
1000 (1.75)OptOptional | |
Engine RPM | 540@2210 |
540E@1608 | |
1000@2200 | |
1000E@1600 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 99.7 inches
253 cm |
Weight | 11056 lbs
5015 kg |
Front tire | 16.9R24 |
Rear tire | 18.4R38 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Steyr 9100 published in 1995 |
Engine
Engine Detail — 268.3 ci / 4.4 L Diesel
Manufacturer | Sisu 420.8 |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 268.3 ci
4.4 L |
Bore/Stroke | 4.25x4.72 inches
108 x 120 mm |
Power | 105 hp
78.3 kW |
Rated RPM | 2300 |
Torque | 307 lb-ft
416.3 Nm |
Torque RPM | 1500 |
Transmission
Transmission options | |
|---|---|
24-speed synchronized | |
40-speed creeper |

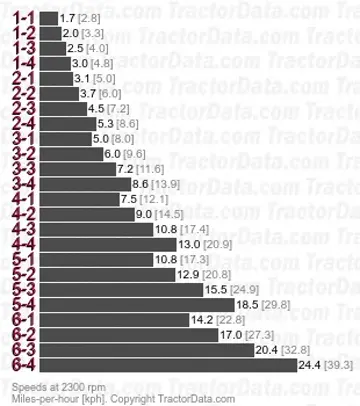

Transmission — Power-4
Transmission | Power-4 |
Type | synchronized |
Gears | 24 forward and reverse |
With 20.8R38 rear tires. | |
 | |
Type | creeper |
Gears | 40 forward and reverse |
Dimensions
Steyr 9105 Tires | |
|---|---|
Ag front | 16.9R24 |
Ag rear | 18.4R38 |
Dimensions | |
|---|---|
Wheelbase | 99.7 inches
253 cm |
Length | 175.2 inches
445 cm |
Width | 92.5 inches
234 cm |
Height | 114.2 inches
290 cm |
Weight | 11056 lbs
5015 kg |
Max weight | 18739 lbs
8500 kg |
Front tread | 70.9 inches
180 cm |
Rear tread | 70.9 inches
180 cm |
Photos
Steyr 9105 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Steyr 9105 based on its 105 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Steyr 9105.
Estimated Continuous Field Runtime: 10.6 hrs
Approximately 10.6 hours of continuous field operation at ~75% rated power on a full tank (58.1 gal / 219.9 L).
Estimated 75% Load Fuel Burn~5.5 gal/hr (20.7 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Steyr 9105 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Steyr 9105.
Converted Equivalents:
Horsepower (HP)105 hp
Kilowatts (kW)78.3 kW
Metric Horsepower (PS / CV)106.5 PS
Direct Competitor Comparison
Compare Steyr 9105 against same-era industry alternatives in the same horsepower class.
Current Model
Steyr
Steyr 9105
Engine Power:Diesel (listed): 105 hp / 78.3 kW
★ Baseline Reference
