Steyr 9125
The Steyr 9125 is a tractor produced by Steyr. It is equipped with a 402.5 ci 6.6 L engine. The rated power output is 126 hp 94.0 kW. Transmission: Power-4. Operating weight: 11607 lbs 5264 kg.
Engine Power
126 hp
94.0 kW
Fuel & Capacities
58.1 gal
219.9 L
Transmission
Power-4
Operating Weight
11607 lbs
5264 kg
Steyr 9125 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1995 - 2003
9100 SeriesRow-Crop tractor |
|---|---|
1995 - 2003 | |
9100 Series | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | Steyr |
Row-Crop tractor | |
Variants | |
|---|---|
CS 130 | similar CaseIH model |
Steyr 9125 Engine | |
|---|---|
Sisu 6.6L 6-cyl diesel | |
Fuel tank | 58.1 gal
219.9 L |
79.3 gal*Total capacity with optional 80L fuel tank.
300.2 L | |
Engine details ...  | |
Steyr 9125 Power | |
|---|---|
Engine | 126 hp
94.0 kW |
PTO (claimed) | 110 hp
82.0 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Disc brakes | |
Cab standard. |
Hydraulics | |
|---|---|
Total flow | 21.1 gpm
79.9 lpm |
30.4 gpm
115.1 lpm | |
Tractor hitch | |
|---|---|
Rear Type | III/II |
Rear lift | 19470 lbs
8831 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 (1.375) |
1000 (1.75)OptOptional | |
Engine RPM | 540@2210 |
540E@1608 | |
1000@2200 | |
1000E@1600 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 110.1 inches
279 cm |
Weight | 11607 lbs
5264 kg |
Front tire | 16.9R28 |
Rear tire | 20.8R38 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Steyr 9100 published in 1995 |
Engine
Engine Detail — 402.5 ci / 6.6 L Diesel
Manufacturer | Sisu 620.82 |
Configuration | turbocharged diesel, 6-cylinder, liquid-cooled |
Displacement | 402.5 ci
6.6 L |
Bore/Stroke | 4.25x4.72 inches
108 x 120 mm |
Power | 126 hp
94.0 kW |
Rated RPM | 2300 |
Torque | 366 lb-ft
496.3 Nm |
Torque RPM | 1400 |
Transmission
Transmission options | |
|---|---|
24-speed synchronized | |
40-speed creeper |

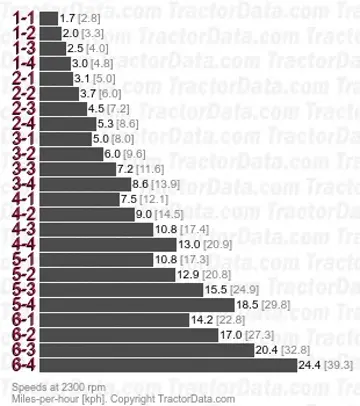

Transmission — Power-4
Transmission | Power-4 |
Type | synchronized |
Gears | 24 forward and reverse |
With 20.8R38 rear tires. | |
 | |
Type | creeper |
Gears | 40 forward and reverse |
Dimensions
Steyr 9125 Tires | |
|---|---|
Ag front | 16.9R28 |
Ag rear | 20.8R38 |
Dimensions | |
|---|---|
Wheelbase | 110.1 inches
279 cm |
Length | 187.8 inches
477 cm |
Width | 98.4 inches
249 cm |
Height | 115.8 inches
294 cm |
Weight | 11607 lbs
5264 kg |
Max weight | 19842 lbs
9000 kg |
Front tread | 70.9 inches
180 cm |
Rear tread | 76 inches
193 cm |
Photos
Steyr 9125 tractor photo
