Suzue M1503

The Suzue M1503 is a tractor produced by Suzue. It is equipped with a 51.7 ci 0.8 L engine. The listed engine power is Diesel (listed): 15 hp / 11.2 kW. Transmission: 9 forward and 3 reverse.

Engine Power
Diesel (listed): 15 hp / 11.2 kW
Fuel & Capacities
Diesel
Transmission
9 forward and 3 reverse

Overview

Suzue M1503 tractor photo
Compact Utility tractor
Compact Utility tractor
Production
Manufacturer
Suzue
Compact Utility tractor
Variants
M1503D
4WD
Suzue M1503 Engine
Mitsubishi 0.8L 3-cyl diesel
Engine details ...
Suzue M1503 Transmission
9-speed gear
Transmission details ...
Suzue M1503 Power
Engine
15 hp 11.2 kW
Mechanical
Two- or four-wheel drive
Open operator station.
Dimensions & Tires
Full dimensions and tires ...

Engine

Engine Detail — 51.7 ci / 0.8 L Diesel

Manufacturer
Mitsubishi K3B
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled inline
Displacement
51.7 ci 0.8 L
Bore/Stroke
2.67x3.07 inches 68 x 78 mm
Power
15 hp 11.2 kW
Starter
electric
Starter volts
12

Transmission

Transmission — 9 forward and 3 reverse gear

Type
gear
Gears
9 forward and 3 reverse

Dimensions

Suzue M1503 Tires
Dimensions

Photos

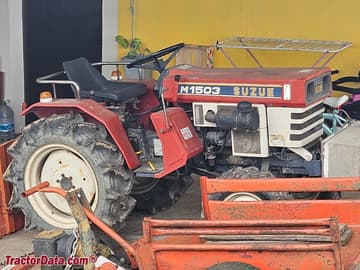

Suzue M1503D compact utility tractor.

Suzue M1503D compact utility tractor.

Recommended Implements & Sizing Guide

Engineering recommendations for Suzue M1503 based on its 15 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Suzue M1503.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Suzue M1503 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Suzue M1503.

Converted Equivalents:

Horsepower (HP)15 hp
Kilowatts (kW)11.2 kW
Metric Horsepower (PS / CV)15.2 PS

Direct Competitor Comparison

Compare Suzue M1503 against same-era industry alternatives in the same horsepower class.

Current Model
Suzue

Suzue M1503

Engine Power:Diesel (listed): 15 hp / 11.2 kW
★ Baseline Reference
KubotaMarket Competitor

Kubota B1402

Engine Power:13.8
Production Years:1981 - 1985
International HarvesterMarket Competitor

International Harvester D-214

Engine Power:14
Production Years:1958 - 1962
IsekiMarket Competitor

Iseki TU135F

Engine Power:13.5
Production Years:1986 - 1990
HinomotoMarket Competitor

Hinomoto E14

Engine Power:13.8
Production Years:1977 - 1979
