Swaraj 855

The Swaraj 855 is a tractor produced by Swaraj. It is equipped with a 190 ci 3.1 L engine. The listed engine power is Diesel (listed): 55 hp / 41.0 kW; Engine Detail — 190 ci / 3.1 L (listed): 50.5 hp / 37.7 kW. Transmission: 8 forward and 2 reverse. Drive type: 4x2 2WD. Operating weight: 4,365 lbs 1979 kg.

Overview

Production
Manufacturer	Swaraj
Built in India

Swaraj 855 Transmission
8-speed
Transmission details ...

Swaraj 855 Power
Engine	55 hp 41.0 kW

Mechanical
Drive	4x2 2WD
	4x4 MFWD 4WD (optional)
Steering	power optional
Brakes	disc
	wet disc (optional)

Hydraulics
Pressure	2600 psi 179.3 bar
Total flow	4.491 gpm 17.0 lpm
	5.548 gpm (optional) 21.0 lpm
	11 gpm (4WD) 41.6 lpm

Tractor hitch
Rear Type	I
Rear lift (at ends)	2,205 lbs 1000 kg
	3,307 lbs (optional) 1500 kg
	4,850 lbs (4WD) 2199 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000
	540 (optional)

Dimensions & Tires
Wheelbase	76.77 inches 194 cm
Weight	4,365 lbs 1979 kg
Front tire	6.00-16
Rear tire	13.6-28
Full dimensions and tires ...

Electrical
Charging amps	35
Battery volts	12

Engine

Engine options
Kirloskar 3.3L 3-cyl diesel
3.1L 3-cyl

Engine Detail — 201.9 ci / 3.3 L Diesel

Manufacturer	Kirloskar RB-33 TR
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	201.9 ci 3.3 L
Power	55 hp 41.0 kW
Air cleaner	dry with re-cleaner
Rated RPM	2000
Starter volts	12

Engine Detail — 190 ci / 3.1 L

Manufacturer	3R1040E
Configuration	3-cylinder
Displacement	190 ci 3.1 L
Power	50.5 hp 37.7 kW
Torque	150 lb-ft 203.4 Nm
Torque RPM	1200

Transmission

Transmission — 8 forward and 2 reverse

Gears

8 forward and 2 reverse

Dimensions

Swaraj 855 Tires
Ag front	6.00-16
Ag rear	13.6-28
Ag front	6.50-20
Ag rear	16.9-28

Dimensions
Wheelbase	76.77 inches 194 cm
Length	134.6 inches 341 cm
	148 inches (4WD) 375 cm
Width	67.52 inches 171 cm
	76 inches (4WD) 193 cm
Height	89.57 inches 227 cm
	95 inches (4WD) 241 cm
Weight	4,365 lbs 1979 kg
Ground clearance	15.75 inches 40 cm
	13.5 inches (4WD) 34 cm

Photos

Swaraj 855

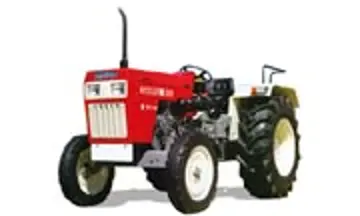

Swaraj 855
