Swaraj 722

The Swaraj 722 is a tractor produced by Swaraj. It is equipped with a 86.96 ci 1.4 L engine. The listed engine power is Diesel (listed): 24.5 hp / 18.3 kW. Transmission: 8 forward and 2 reverse. Operating weight: 3,946 lbs 1789 kg.

Overview

Production
Manufacturer	Swaraj
Built in India

Swaraj 722 Engine
1.4L 1-cyl diesel
Engine details ...

Swaraj 722 Transmission
8-speed
Transmission details ...

Swaraj 722 Power
Engine	24.5 hp 18.3 kW

Mechanical
Disc brakes

Hydraulics
Total flow	3.83 gpm 14.5 lpm

Tractor hitch
Rear Type	I
Rear lift (at ends)	2,205 lbs 1000 kg

Power Take-off (PTO)
Rear PTO Type	1000
	540 (optional)

Dimensions & Tires
Wheelbase	71.26 inches 181 cm
Weight	3,946 lbs 1789 kg
Front tire	6.00-16
Rear tire	12.4-28
Full dimensions and tires ...

Engine

Engine Detail — 86.96 ci / 1.4 L Diesel

Manufacturer	S-15
Fuel Type	Diesel
Configuration	1-cylinder, liquid-cooled
Displacement	86.96 ci 1.4 L
Bore/Stroke	4.724x4.961 inches 120 x 126 mm
Power	24.5 hp 18.3 kW
Air cleaner	cyclonic pre-cleaner, oil bowl, paper filter
Rated RPM	1900
Starter volts	12

Transmission

Transmission — 8 forward and 2 reverse

Gears

8 forward and 2 reverse

Dimensions

Swaraj 722 Tires
Ag front	6.00-16
Ag rear	12.4-28

Dimensions
Wheelbase	71.26 inches 181 cm
Length	129.5 inches 328 cm
Width	65.55 inches 166 cm
Height	84.45 inches 214 cm
Weight	3,946 lbs 1789 kg
Ground clearance	15.94 inches 40 cm

Photos

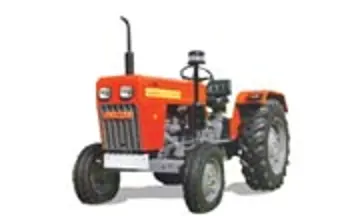

Swaraj 722 tractor photo
