Swaraj 724FE

The Swaraj 724FE is a tractor produced by Swaraj. It is equipped with a 105.4 ci 1.7 L engine. The listed engine power is Diesel (listed): 26.5 hp / 19.8 kW. Transmission: 8 forward and 2 reverse. Operating weight: 3,814 lbs 1730 kg.

Overview

Production
Manufacturer	Swaraj
Built in India

Swaraj 724FE Engine
1.7L 2-cyl diesel
Engine details ...

Swaraj 724FE Transmission
8-speed
Transmission details ...

Swaraj 724FE Power
Engine	26.5 hp 19.8 kW

Mechanical
Disc brakes

Hydraulics
Total flow	4.491 gpm 17.0 lpm

Tractor hitch
Rear Type	I
Rear lift (at ends)	2,205 lbs 1000 kg

Power Take-off (PTO)
Rear PTO Type	1000
	540 (optional)

Dimensions & Tires
Wheelbase	71.46 inches 181 cm
Weight	3,814 lbs 1730 kg
Front tire	6.00-16
Rear tire	12.4-28
Full dimensions and tires ...

Engine

Engine Detail — 105.4 ci / 1.7 L Diesel

Manufacturer	RV-2 TR
Fuel Type	Diesel
Configuration	2-cylinder, liquid-cooled
Displacement	105.4 ci 1.7 L
Bore/Stroke	3.937x4.331 inches 100 x 110 mm
Power	26.5 hp 19.8 kW
Air cleaner	cyclonic pre-cleaner, oil bowl, paper filter
Rated RPM	2000
Starter volts	12

Transmission

Transmission — 8 forward and 2 reverse

Gears

8 forward and 2 reverse

Dimensions

Swaraj 724FE Tires
Ag front	6.00-16
Ag rear	12.4-28

Dimensions
Wheelbase	71.46 inches 181 cm
Length	129.3 inches 328 cm
Width	65.94 inches 167 cm
Height	83.46 inches 211 cm
Weight	3,814 lbs 1730 kg
Ground clearance	15.16 inches 38 cm

Photos

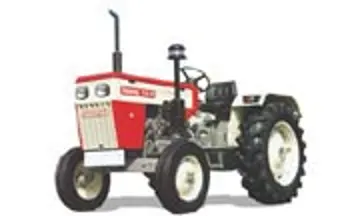

Swaraj 724FE tractor photo
