TAFE 5040
The TAFE 5040 is a tractor produced by Tafe. It is equipped with a 164.76 ci 2.7 L engine. The listed engine power is Diesel (listed): 50 hp / 37.3 kW. Transmission: sliding mesh. Operating weight: 4,100 lbs 1859 kg.
Engine Power
Diesel (listed): 50 hp / 37.3 kW
Fuel & Capacities
11.6 gal
43.9 L
Transmission
sliding mesh
Operating Weight
4,100 lbs
1859 kg
Overview
 | Utility tractor | Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | TAFE |
Utility tractor | |
Built in India | |
TAFE 5040 Engine | |
|---|---|
2.7L 3-cyl diesel | |
Fuel tank | 11.6 gal
43.9 L |
Engine details ...  | |
TAFE 5040 Transmission | |
|---|---|
8-speed | |
Transmission details ...  |
TAFE 5040 Power | |
|---|---|
Engine | 50 hp
37.3 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | hydrostatic power |
Drum brakes | |
Two-post ROPS. | |
Hydraulics | |
|---|---|
Valves | 3 |
Total flow | 4.23 gpm
16.0 lpm |
Tractor hitch | |
|---|---|
Rear lift | 3,196.70 lbs
1450 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Wheelbase | 77 inches
195 cm |
Weight | 4,100 lbs
1859 kg |
Front tire | 6.00x16 |
Rear tire | 13.6x28 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging amps | 36 |
Battery volts | 12 |
Engine
Engine Detail — 164.76 ci / 2.7 L Diesel
Manufacturer | SJ327E |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 164.76 ci
2.7 L |
Bore/Stroke | 3.74x5.00 inches
95 x 127 mm |
Power | 50 hp
37.3 kW |
Air cleaner | dry |
Rated RPM | 2250 |
Torque | 132.8 lb-ft
180.1 Nm |
Torque RPM | 1200 |
Oil capacity | 6 qts
5.7 L |
Coolant capacity | 10.4 qts
9.8 L |
Transmission
Transmission — sliding mesh
Transmission | sliding mesh |
Gears | 8 forward and 2 reverse |
Dimensions
TAFE 5040 Tires | |
|---|---|
Ag front | 6.00x16 |
Ag rear | 13.6x28 |
Dimensions | |
|---|---|
Wheelbase | 77 inches
195 cm |
Length | 126 inches
320 cm |
Width | 63.8 inches
162 cm |
Height | 89.4 inches
227 cm |
Weight | 4,100 lbs
1859 kg |
Ground clearance | 13.8 inches
35 cm |

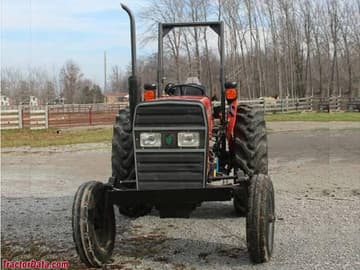

Photos
TAFE 5040
TAFE 5040
TAFE 5040
TAFE 5040
Recommended Implements & Sizing Guide
Engineering recommendations for Tafe 5040 based on its 50 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Tafe 5040.
Estimated Continuous Field Runtime: 4.5 hrs
Approximately 4.5 hours of continuous field operation at ~75% rated power on a full tank (11.6 gal / 43.9 L).
Estimated 75% Load Fuel Burn~2.6 gal/hr (9.8 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Tafe 5040 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Tafe 5040.
Converted Equivalents:
Horsepower (HP)50 hp
Kilowatts (kW)37.3 kW
Metric Horsepower (PS / CV)50.7 PS
Direct Competitor Comparison
Compare TAFE 5040 against same-era industry alternatives in the same horsepower class.
Current Model
Tafe
TAFE 5040
Engine Power:Diesel (listed): 50 hp / 37.3 kW
★ Baseline Reference
