Taishan-America T-50S

The Taishan-America T-50S is a tractor produced by Taishan America. It is equipped with a 198.9 ci 3.3 L engine. The listed engine power is Diesel (listed): 50 hp / 37.3 kW. Transmission: 8 forward and 2 reverse.

Engine Power

Diesel (listed): 50 hp / 37.3 kW

Fuel & Capacities

Diesel

Transmission

8 forward and 2 reverse

Overview

	1983 - 1985 Compact Utility tractor

Production
Manufacturer	Taishan-America
Compact Utility tractor
Built in Tsinan, Shandong, China
Original price was $14,950 in 1983

Taishan-America T-50S Engine
3.3L 4-cyl diesel
Engine details ...

Taishan-America T-50S Transmission
8-speed gear
Transmission details ...

Taishan-America T-50S Power
Engine	50 hp 37.3 kW

Mechanical
Four-wheel drive
Open operator station.

Tractor hitch
Rear Type	II

Dimensions & Tires
Full dimensions and tires ...

Engine

Engine Detail — 198.9 ci / 3.3 L Diesel

Manufacturer	495
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	198.9 ci 3.3 L
Bore/Stroke	3.74x4.53 inches 95 x 115 mm
Power	50 hp 37.3 kW
Rated RPM	2000
Starter	electric
Starter volts	12

Transmission

Transmission — 8 forward and 2 reverse gear

Type	gear
Gears	8 forward and 2 reverse

Dimensions

Taishan-America T-50S Tires

Dimensions

Photos

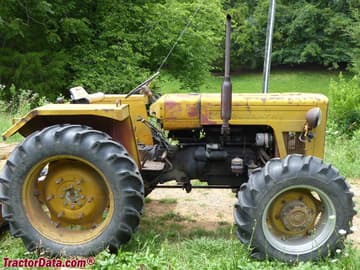

Taishan-America T-50S

Recommended Implements & Sizing Guide

Engineering recommendations for Taishan America Taishan-America T-50S based on its 50 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm)	Medium Duty	Standard utility farm tillage.
Rotary Cutter / MowerMowing & Clearing	6 ft (72 in)1.8 m	Medium Duty	Medium pasture clearing; rear slip-clutch recommended.
Rotary TillerSeedbed Prep	66 to 72 in165 - 180 cm	Medium Duty	Standard utility tiller; slip clutch protection required.
Disc HarrowSecondary Tillage	7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙	Medium Duty	Field leveling and clod breaking behind plows.
Hay BalerHay & Forage	Small Square Baler (14x18")小方捆打捆机 (36x46 cm)	Medium Duty	Classic 2-string baler for horse and small livestock hay.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Taishan America Taishan-America T-50S.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Taishan America Taishan-America T-50S Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Taishan America Taishan-America T-50S.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)50 hp

Kilowatts (kW)37.3 kW

Metric Horsepower (PS / CV)50.7 PS
