Toro 550

The Toro 550 is a tractor produced by Toro Lawn Tractors. It is equipped with a 199 cc 12.18 ci engine. The listed engine power is Gasoline (gross): 5 hp / 3.7 kW; Gasoline (gross): 5 hp / 3.7 kW. Transmission: Peerless 352. Operating weight: 240 lbs 108 kg.

Overview

	1970 - 1973 Lawn tractor

Production
Manufacturer	Toro
Lawn tractor

Variants
500	manual recoil start
550	electric start

Toro 550 Transmission
3-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Mechanical band brakes
Open operator station.

Power Take-off (PTO)
Rear PTO	independent

Dimensions & Tires
Wheelbase	39 inches 99 cm
Weight	240 lbs 108 kg
Front tire	11x4.00-5
Rear tire	13x5.00-6
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine options
5HP Briggs & Stratton 206cc 1-cyl gasoline
5HP Tecumseh 199cc 1-cyl gasoline

Engine Detail — 206 cc / 12.57 ci Gasoline

Manufacturer	Briggs & Stratton 130905
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	206 cc 12.57 ci
Bore/Stroke	2.5625x2.4375 inches 65 x 62 mm
Power (gross)	5 hp 3.7 kW
Starter	electric
Starter volts	12

Engine Detail — 199 cc / 12.18 ci Gasoline

Manufacturer	Tecumseh V50-60203H
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	199 cc 12.18 ci
Bore/Stroke	2.625x2.25 inches 67 x 57 mm
Power (gross)	5 hp 3.7 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Peerless 352

Transmission	Peerless 352
Type	belt-driven gear
Gears	3 forward and 1 reverse
Clutch	idler pulley

Dimensions

Toro 550 Tires
Lawn/turf front	11x4.00-5
Lawn/turf rear	13x5.00-6

Dimensions
Wheelbase	39 inches 99 cm
Length	52 inches 132 cm
Width	29 inches 73 cm
Height	33 inches 83 cm
Weight	240 lbs 108 kg
Front tread	23.5 inches 59 cm
Rear tread	21.5 inches 54 cm

Attachments

Attachment overview
25" mid-mount mower deck
Blade

25" Mower deck
Type	mid-mount Toro
	1-blade
Cutting width	25 inches 63 cm
Cut height	1.25 to 3 inch 3 to 7 cm

Photos

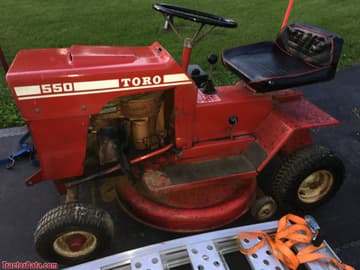

Toro 550

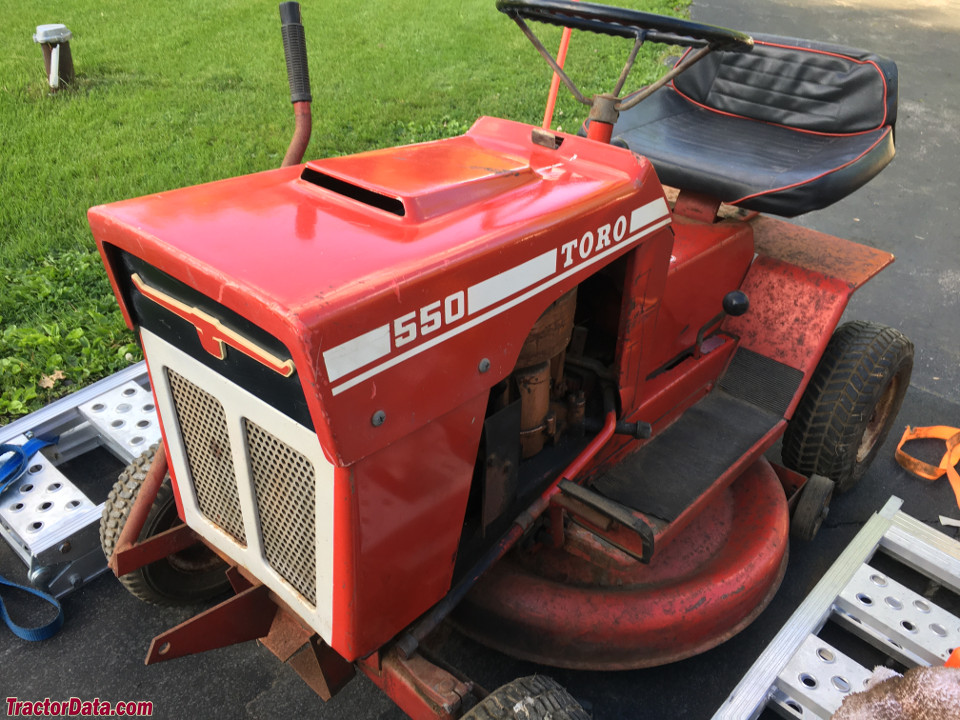

Toro 550
