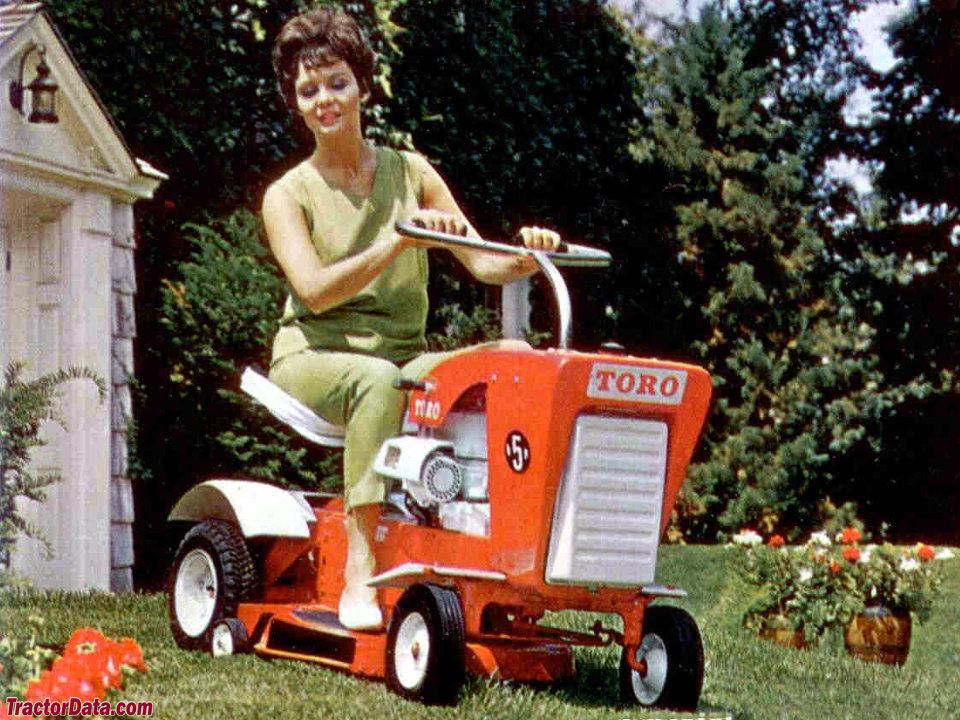

Toro 5 HP
The Toro 5 HP is a tractor produced by Toro Lawn Tractors. It is equipped with a 198 cc 12.1 ci engine. The listed engine power is Gasoline (gross): 5 hp / 3.7 kW. Transmission: 2 forward and 1 reverse.
Engine Power
Gasoline (gross): 5 hp / 3.7 kW
Fuel & Capacities
Gasoline
Transmission
2 forward and 1 reverse
Overview
 | 1967 - 1968
Model year 19671968
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Toro |
Lawn tractor | |
Original price was $400 in 1967 | |
Variants | |
|---|---|
57100 | manual start |
57200 | electric start |
Toro 5 HP Engine | |
|---|---|
5HP Tecumseh 198cc 1-cyl gasoline | |
Engine details ...  |
Toro 5 HP Transmission | |
|---|---|
2-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Toro 1967 |
Engine
Engine Detail — 198 cc / 12.1 ci Gasoline
Manufacturer | Tecumseh V50 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Displacement | 198 cc
12.1 ci |
Bore/Stroke | 2.625x2.25 inches
67 x 57 mm |
Power (gross) | 5 hp
3.7 kW |
Starter | manual recoil *Model 57100 |
electric *Model 57200 | |
Starter volts | 12 |
Transmission
Transmission — 2 forward and 1 reverse belt-driven gear
Type | belt-driven gear |
Gears | 2 forward and 1 reverse |
Dimensions
Toro 5 HP Tires |
|---|
Dimensions |
|---|
Attachments
25" Mower deck | |
|---|---|
Type | mid-mount Toro |
1-blade | |
Cutting width | 25 inches
63 cm |
Photos
Toro 5 HP
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Toro Lawn Tractors Toro 5 HP.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Toro Lawn Tractors Toro 5 HP Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Toro Lawn Tractors Toro 5 HP.
Converted Equivalents:
Horsepower (HP)5 hp
Kilowatts (kW)3.7 kW
Metric Horsepower (PS / CV)5.1 PS
