Troy-Bilt 13105 LTX 16

The Troy-Bilt 13105 LTX 16 is a tractor produced by Troy Bilt Lawn Tractors. It is equipped with a 480 cc 29.3 ci engine. The listed engine power is Gasoline (gross): 16 hp / 11.9 kW. Transmission: Eaton 751. Operating weight: 490 lbs 222 kg.

Engine Power

Gasoline (gross): 16 hp / 11.9 kW

Fuel & Capacities

4 gal 15.1 L

Transmission

Eaton 751

Operating Weight

490 lbs 222 kg

Overview

	1997 - 2001 LTX SeriesLawn tractor LTX Series Lawn tractor

Production
Manufacturer	Troy-Bilt
Lawn tractor
Built in Troy, New York, USA
Original price was $3,899 in 2001

Troy-Bilt 13105 Engine
16HP Vanguard 480cc 2-cyl gasoline
Fuel tank	4 gal 15.1 L
Engine details ...

Troy-Bilt 13105 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	49.75 inches 126 cm
Weight	490 lbs 222 kg
Front tire	16x6.50-8
Rear tire	23x10.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery CCA	295
Battery volts	12

References

Owner/Operator Manual Models 13102, 13103, 13104, 13105 (1774269) published in 1997
Parts Catalog Models 13123, 13104, 13105 (770-1170B) published in 1999

Engine

Engine Detail — 480 cc / 29.3 ci Gasoline

Manufacturer	Vanguard
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	480 cc 29.3 ci
Bore/Stroke	2.68x2.60 inches 68 x 66 mm
Power (gross)	16 hp 11.9 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Eaton 751

Transmission	Eaton 751
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Troy-Bilt 13105 Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x10.50-12

Dimensions
Wheelbase	49.75 inches 126 cm
Length	72 inches 182 cm
Width	38 inches 96 cm
Height	45 inches 114 cm
Shipping weight	490 lbs 222 kg
Ground clearance	8.25 inches 20 cm

Attachments

Attachment overview
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade

Photos

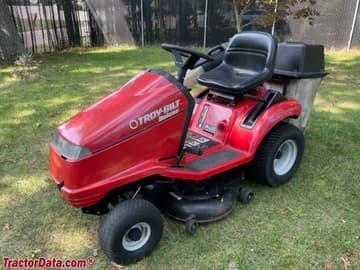

Troy-Bilt 13105 LTX 16

Recommended Implements & Sizing Guide

Engineering recommendations for Troy Bilt Lawn Tractors Troy-Bilt 13105 LTX 16 based on its 16 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	4 ft (48 in)1.2 m	Light Duty	Pasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep	42 to 48 in105 - 120 cm	Light Duty	Covers compact tractor tire width.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Troy Bilt Lawn Tractors Troy-Bilt 13105 LTX 16.

Estimated Continuous Field Runtime: 4.8 hrs

Approximately 4.8 hours of continuous field operation at ~75% rated power on a full tank (4 gal / 15.1 L).

Estimated 75% Load Fuel Burn~0.8 gal/hr (3.1 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Troy Bilt Lawn Tractors Troy-Bilt 13105 LTX 16 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Troy Bilt Lawn Tractors Troy-Bilt 13105 LTX 16.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)16 hp

Kilowatts (kW)11.9 kW

Metric Horsepower (PS / CV)16.2 PS
