Troy-Bilt 1668R
The Troy-Bilt 1668R is a tractor produced by Troy Bilt Lawn Tractors. It is equipped with a 655 cc 40 ci engine. The listed engine power is Gasoline (listed): 16 hp / 11.9 kW. Transmission: Eaton 11.
Overview
 | 1989
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Troy-Bilt |
Garden tractor | |
Built in Port Washington, Wisconsin, USA | |
Troy-Bilt 1668R Engine | |
|---|---|
16HP Briggs & Stratton 655cc 2-cyl gasoline | |
Engine details ...  |
Troy-Bilt 1668R Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Front tire | 16x6.50-8 |
Rear tire | 23x10.50-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 655 cc / 40 ci Gasoline
Manufacturer | Briggs & Stratton 402447 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled |
Displacement | 655 cc
40 ci |
Bore/Stroke | 3.44x2.16 inches
87 x 55 mm |
Power | 16 hp
11.9 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — Eaton 11
Transmission | Eaton 11 |
Type | shaft-driven hydrostatic |
Gears | infinite forward and reverse |
Dimensions
Troy-Bilt 1668R Tires | |
|---|---|
Lawn/turf front | 16x6.50-8 |
Lawn/turf rear | 23x10.50-12 |
Dimensions |
|---|
Photos

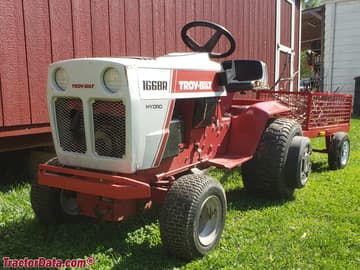

Troy-Bilt 1668R garden tractor.

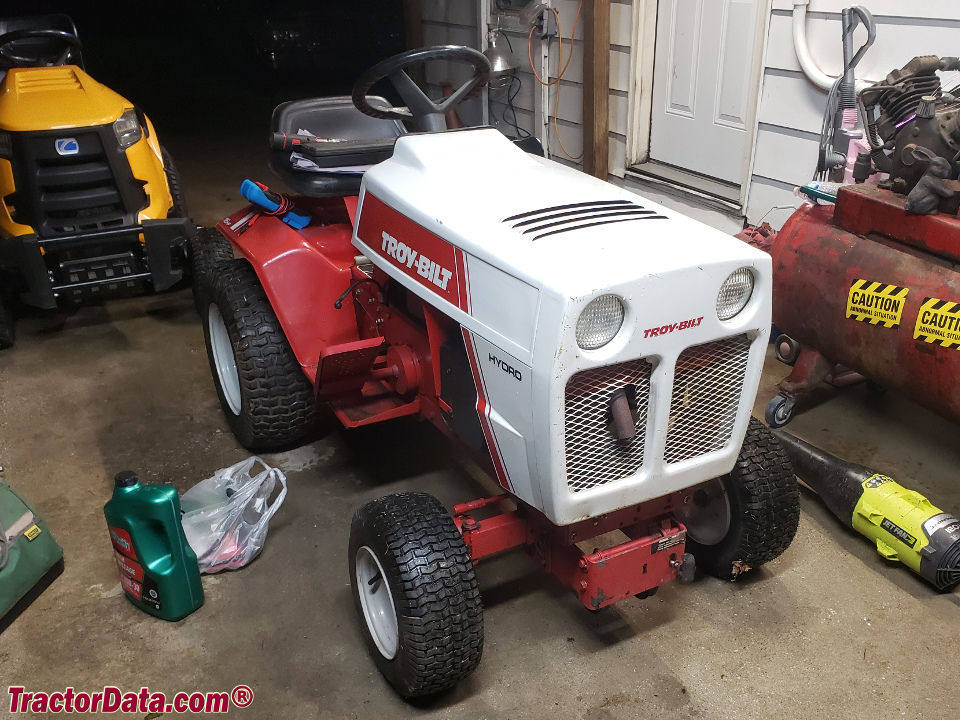

Troy-Bilt 1668R garden tractor.
Recommended Implements & Sizing Guide
Engineering recommendations for Troy Bilt Lawn Tractors Troy-Bilt 1668R based on its 16 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Troy Bilt Lawn Tractors Troy-Bilt 1668R.
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Troy Bilt Lawn Tractors Troy-Bilt 1668R Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Troy Bilt Lawn Tractors Troy-Bilt 1668R.
Converted Equivalents:
Direct Competitor Comparison
Compare Troy-Bilt 1668R against same-era industry alternatives in the same horsepower class.
Troy-Bilt 1668R
