Troy-Bilt GTX 16
The Troy-Bilt GTX 16 is a tractor produced by Troy Bilt Lawn Tractors. The listed engine power is Gasoline (listed): 16 hp / 11.9 kW. Transmission: Eaton 11. Operating weight: 765 lbs 347 kg.
Overview
 | 1996 - 2001
GTX SeriesGarden tractor
GTX Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Troy-Bilt |
Garden tractor | |
Built in Port Washington, Wisconsin, USA | |
Original price was $5,900 in 2000 | |
Troy-Bilt GTX 16 Engine | |
|---|---|
16HP Briggs & Stratton 2-cyl gasoline | |
Fuel tank | 4.3 gal
16.3 L |
Engine details ...  | |
Troy-Bilt GTX 16 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Open operator station. |
Tractor hitch | |
|---|---|
Rear Type | 0 OptOptional |
Type | sleeve hitch OptOptional |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 49 inches
124 cm |
Weight | 765 lbs
347 kg |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Owner/Operator Manual GTX Garden Tractor (770-1177A) published in 1998 |
Engine
Engine Detail — Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled horizontal-shaft |
Power | 16 hp
11.9 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — Eaton 11
Transmission | Eaton 11 |
Type | shaft-driven hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
Troy-Bilt GTX 16 Tires |
|---|
Dimensions | |
|---|---|
Wheelbase | 49 inches
124 cm |
Length | 76.8 inches
195 cm |
Width | 38.5 inches
97 cm |
Height | 47.8 inches
121 cm |
Shipping weight | 765 lbs
347 kg |
Attachments
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
48" mid-mount mower deck | |
Snowblower | |
Blade | |
The GTX 16 was compatible with model 14065 33-inch shaft-drive tiller. |
Photos

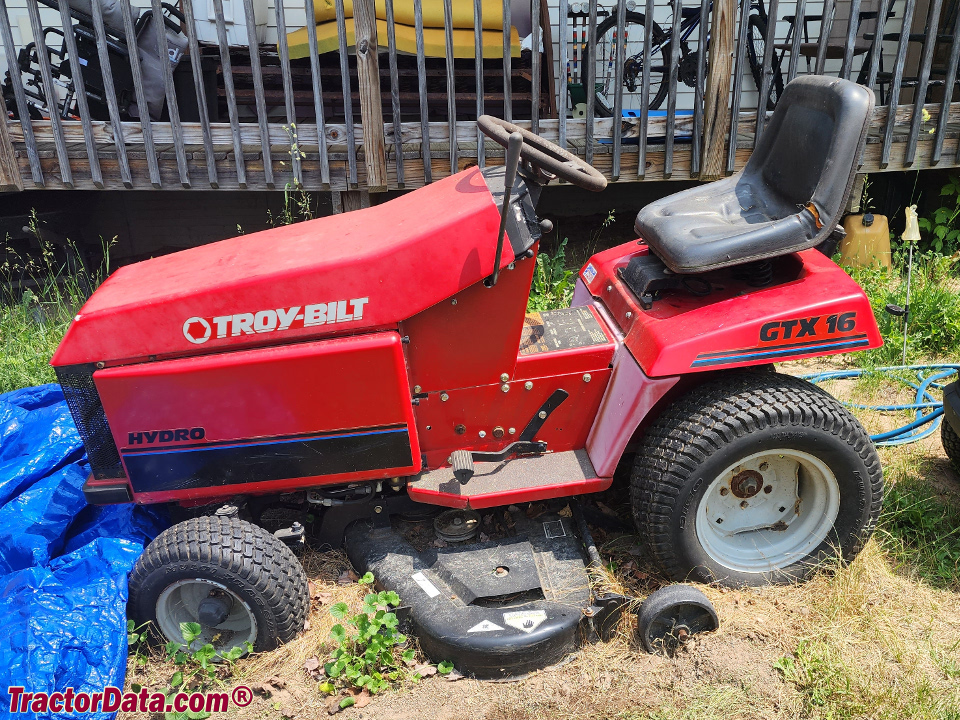

Troy-Bilt GTX 16

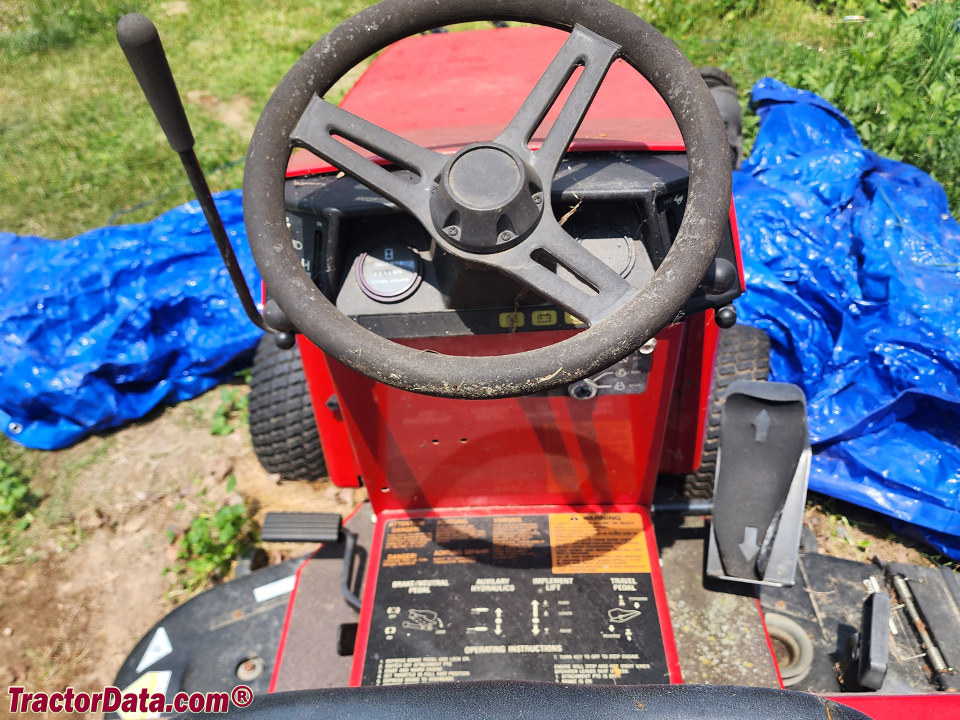

Troy-Bilt GTX 16 operator station and controls.
Recommended Implements & Sizing Guide
Engineering recommendations for Troy Bilt Lawn Tractors Troy-Bilt GTX 16 based on its 16 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Troy Bilt Lawn Tractors Troy-Bilt GTX 16.
Estimated Continuous Field Runtime: 5.2 hrs
Approximately 5.2 hours of continuous field operation at ~75% rated power on a full tank (4.3 gal / 16.3 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Troy Bilt Lawn Tractors Troy-Bilt GTX 16 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Troy Bilt Lawn Tractors Troy-Bilt GTX 16.
Converted Equivalents:
Direct Competitor Comparison
Compare Troy-Bilt GTX 16 against same-era industry alternatives in the same horsepower class.
Troy-Bilt GTX 16
