Twin City KTA
The Twin City KTA is a tractor produced by Twin City. It is equipped with a 283.7 ci 4.6 L engine. Transmission: gear. Operating weight: 4,300 lbs 1950 kg.
Fuel & Capacities
24 gal
90.8 L
Transmission
gear
Operating Weight
4,300 lbs
1950 kg
Overview
 | 1934 - 1938
Standard-tread tractor |
|---|
Production | |
|---|---|
Manufacturer | Twin City (a part of Minneapolis-Moline) |
Standard-tread tractor | |
Built in Minneapolis, Minnesota, USA | |
Total built | 4,552 |
Twin City KTA Engine | |
|---|---|
Minneapolis 4.6L 4-cyl distillate | |
Fuel tank | 24 gal
90.8 L |
Aux. fuel | 3 gal
11.4 L |
Engine details ...  | |
Twin City KTA Transmission | |
|---|---|
3-speed | |
Transmission details ...  |
Twin City KTA Power | |
|---|---|
Drawbar (claimed) | 20 hp
14.9 kW |
Belt (claimed) | 30 hp
22.4 kW |
Drawbar (tested) | 24.8 hp
18.5 kW |
Belt (tested) | 33.7 hp
25.1 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Open operator station |
Dimensions & Tires | |
|---|---|
Weight | 4,300 lbs
1950 kg |
Front tire | 28x5 |
Rear tire | 42x10 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 283.7 ci / 4.6 L
Manufacturer | Minneapolis KE |
Configuration | 4-cylinder 16-valve, liquid-cooled vertical I-head |
distillate | |
Displacement | 283.7 ci
4.6 L |
Bore/Stroke | 4.25x5.00 inches
108 x 127 mm |
Rated RPM | 1150 |
Firing order | 1-3-4-2 |
Coolant capacity | 24 qts
22.7 L |
Transmission
Transmission — gear
Transmission | gear |
Gears | 3 forward and 1 reverse |
Dimensions
Twin City KTA Tires | |
|---|---|
Ag front | 28x5 steel |
Ag rear | 42x10 steel |
Dimensions | |
|---|---|
Length | 131 inches
332 cm |
Height | 64.5 inches
163 cm |
Weight | 4,300 lbs
1950 kg |
Tests
Nebraska Tractor Test 247 | |
|---|---|
Distillate
October 1935 | |
Belt power (max) | 33.7 hp
25.1 kW |
Belt fuel use (max) | 4.1 gal/hour
15.5 l/hour |
Drawbar performance | |
Max power | 24.8 hp
18.5 kW |
Photos

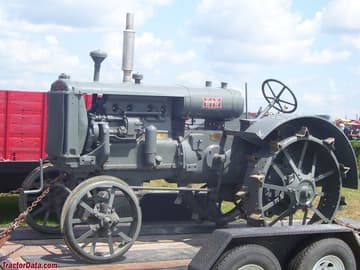

KTA on steel wheels, left side
KTA on rubber tires, right side
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Twin City KTA.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Twin City KTA Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Twin City KTA.
Converted Equivalents:
Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
