Twin City MT
The Twin City MT is a tractor produced by Twin City. It is equipped with a 283.7 ci 4.6 L engine. Transmission: 3 forward and 1 reverse. Operating weight: 4,860 lbs 2204 kg.
Fuel & Capacities
21 gal
79.5 L
Transmission
3 forward and 1 reverse
Operating Weight
4,860 lbs
2204 kg
Overview
 | 1930 - 1934
Row-Crop tractor |
|---|
Production | |
|---|---|
Manufacturer | Twin City (a part of Minneapolis-Moline) |
Row-Crop tractor | |
Built in Minneapolis, Minnesota, USA | |
Total built | 420 |
Twin City MT Engine | |
|---|---|
Minneapolis 4.6L 4-cyl kerosene | |
Fuel tank | 21 gal
79.5 L |
Aux. fuel | 2.5 gal
9.5 L |
Engine details ...  | |
Twin City MT Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Twin City MT Power | |
|---|---|
Drawbar (claimed) | 13 hp
9.7 kW |
Belt (claimed) | 25 hp
18.6 kW |
Plows | 2-3 (14-inch) |
Drawbar (tested) | 18.17 hp
13.5 kW |
Belt (tested) | 26.68 hp
19.9 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Open operator station. | |
Dimensions & Tires | |
|---|---|
Weight | 4,860 lbs
2204 kg |
Front tire | 25x5.75 |
Rear tire | 42x10 |
Full dimensions and tires ...  | |
Belt Pulley | |
|---|---|
Diameter | 14 inches
35 cm |
Width | 7 inches
17 cm |
RPM | 715 |
Speed | 2620 ft/min
798.58 meters/min |
Engine
Engine Detail — 283.7 ci / 4.6 L Kerosene
Manufacturer | Minneapolis |
Fuel Type | Kerosene |
Configuration | 4-cylinder, liquid-cooled vertical I-head |
Displacement | 283.7 ci
4.6 L |
Bore/Stroke | 4.25x5.00 inches
108 x 127 mm |
Fuel system | Schebler TT carburetor |
Rated RPM | 1000 |
Firing order | 1-3-4-2 |
Starter type | hand-crank |
Coolant capacity | 24 qts
22.7 L |
Transmission
Transmission — 3 forward and 1 reverse gear
Type | gear |
Gears | 3 forward and 1 reverse |
Clutch | dry disc |
 | |
Dimensions
Twin City MT Tires | |
|---|---|
Ag front | 25x5.75 (steel) |
Ag rear | 42x10 (steel) |
Dimensions | |
|---|---|
Length | 143 inches
363 cm |
Width | 93 inches
236 cm |
Height | 64.5 inches
163 cm |
Weight | 4,860 lbs
2204 kg |
Tests
Nebraska Tractor Test 197 | |
|---|---|
Kerosene 3-speed 2WD
September 30 - October 8, 1931
Link: Nebraska Tractor Test 197 file | |
Belt power (max) | 26.68 hp
19.9 kW |
Belt fuel use (max) | 2.6 gal/hour
9.8 l/hour |
Drawbar performance | |
Max power | 18.17 hp
13.5 kW |
Gear 1 used for power test. | |
Max pull | 2889 lbs
1310 kg |
Gear 1 used for pull test. | |
Photos

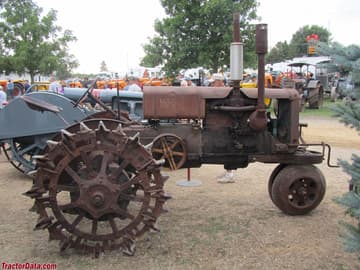

Twin City MT
Twin City MT
Twin City MT
Twin-City MT operator station and controls.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Twin City MT.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Twin City MT Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Twin City MT.
Converted Equivalents:
Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
