Tytan 406
The Tytan 406 is a tractor produced by Tytan. The listed engine power is Diesel (listed): 40 hp / 29.8 kW. Transmission: 8 forward and 2 reverse. Drive type: crawler. Operating weight: 5950 to 7130 pounds.
Engine Power
Diesel (listed): 40 hp / 29.8 kW
Drive & Traction
crawler
Fuel & Capacities
8 gal
30.3 L
Transmission
8 forward and 2 reverse
Operating Weight
5950 to 7130 pounds
Overview
 | Agricultural Crawler tractor | Agricultural Crawler tractor |
|---|
Production | |
|---|---|
Manufacturer | Tytan |
Agricultural Crawler tractor | |
Built in Shandong, China | |
Tytan 406 Engine | |
|---|---|
3-cyl diesel | |
Fuel tank | 8 gal
30.3 L |
Engine details ...  | |
Tytan 406 Transmission | |
|---|---|
8-speed | |
Transmission details ...  |
Tytan 406 Power | |
|---|---|
Engine | 40 hp
29.8 kW |
Mechanical | |
|---|---|
Drive | crawler |
Steering | power |
Mechanical dry band brakes | |
ROPS cage | |
Hydraulics | |
|---|---|
Valves | 2 |
Total flow | 8.5 gpm
32.2 lpm |
Tractor hitch | |
|---|---|
Rear Type | 1 |
Rear lift | 1,650 lbs
748 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/1000 |
Dimensions & Tracks | |
|---|---|
Weight | 5950 to 7130 pounds |
Tracks | |
Full dimensions and tracks ...  | |
Engine
Engine Detail — Diesel
Manufacturer | 395T |
Fuel Type | Diesel |
Configuration | 3-cylinder |
Power | 40 hp
29.8 kW |
Air cleaner | paper element |
Rated RPM | 2000 |
Transmission
Transmission — 8 forward and 2 reverse
Gears | 8 forward and 2 reverse |
 | |
Dimensions
Tytan 406 Tracks |
|---|
Dimensions | |
|---|---|
Length | 115 inches
292 cm |
Width | 64 inches
162 cm |
Height | 84 inches
213 cm |
Ground clearance | 10 inches
25 cm |
Tytan 406 Weight | |
|---|---|
5,950 lbs
2698 kg | |
6,695 lbs (with loader)
3036 kg | |
7,130 lbs (with loader/backhoe)
3234 kg | |
Photos

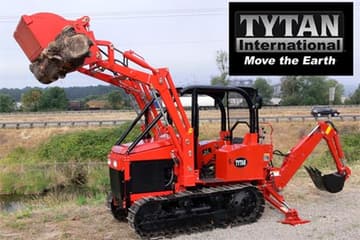

Tytan 406
Recommended Implements & Sizing Guide
Engineering recommendations for Tytan 406 based on its 40 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Tytan 406.
Estimated Continuous Field Runtime: 3.8 hrs
Approximately 3.8 hours of continuous field operation at ~75% rated power on a full tank (8 gal / 30.3 L).
Estimated 75% Load Fuel Burn~2.1 gal/hr (7.9 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Tytan 406 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Tytan 406.
Converted Equivalents:
Horsepower (HP)40 hp
Kilowatts (kW)29.8 kW
Metric Horsepower (PS / CV)40.6 PS
Direct Competitor Comparison
Compare Tytan 406 against same-era industry alternatives in the same horsepower class.
Current Model
Tytan
Tytan 406
Engine Power:Diesel (listed): 40 hp / 29.8 kW
★ Baseline Reference
