Tytan 334
The Tytan 334 is a tractor produced by Tytan. The listed engine power is Diesel (listed): 33 hp / 24.6 kW. Transmission: 8 forward and reverse. Operating weight: 2777 to 5200 pounds.
Engine Power
Diesel (listed): 33 hp / 24.6 kW
Fuel & Capacities
8 gal
30.3 L
Transmission
8 forward and reverse
Operating Weight
2777 to 5200 pounds
Overview
 | Farm/Agricultural tractor | Farm/Agricultural tractor |
|---|
Production | |
|---|---|
Manufacturer | Tytan |
Farm/Agricultural tractor | |
Built in Shandong, China | |
Tytan 334 Engine | |
|---|---|
Changchai 3-cyl diesel | |
Fuel tank | 8 gal
30.3 L |
Engine details ...  | |
Tytan 334 Transmission | |
|---|---|
8-speed | |
Transmission details ...  |
Tytan 334 Power | |
|---|---|
Engine | 33 hp
24.6 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | power |
Mechanical dry shoes brakes | |
Canopy ROPS | |
Hydraulics | |
|---|---|
Valves | 2 |
Total flow | 8.5 gpm
32.2 lpm |
Tractor hitch | |
|---|---|
Rear Type | 1 |
Rear lift | 1,500 lbs
680 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/760 |
Dimensions & Tires | |
|---|---|
Weight | 2777 to 5200 pounds |
Front tire | 7.50x16 |
Rear tire | 18x12.9 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Engine
Engine Detail — Diesel
Manufacturer | Changchai ZN309T |
Fuel Type | Diesel |
Configuration | 3-cylinder |
Power | 33 hp
24.6 kW |
Air cleaner | paper element |
Rated RPM | 2200 |
Transmission
Transmission — 8 forward and reverse
Gears | 8 forward and reverse |
 | |
Dimensions
Tytan 334 Tires | |
|---|---|
Ag front | 7.50x16 |
Ag rear | 18x12.9 |
Dimensions | |
|---|---|
Length | 108 inches
274 cm |
Width | 49 inches (min)
124 cm |
64 inches (max)
162 cm | |
Height | 60 inches
152 cm |
Ground clearance | 11.5 inches
29 cm |
Tytan 334 Weight | |
|---|---|
2,777 lbs
1259 kg | |
4,020 lbs (with loader)
1823 kg | |
5,200 lbs (with loader/backhoe)
2358 kg | |
Photos

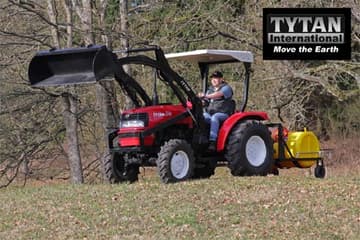

Tytan 334
Recommended Implements & Sizing Guide
Engineering recommendations for Tytan 334 based on its 33 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Tytan 334.
Estimated Continuous Field Runtime: 4.7 hrs
Approximately 4.7 hours of continuous field operation at ~75% rated power on a full tank (8 gal / 30.3 L).
Estimated 75% Load Fuel Burn~1.7 gal/hr (6.5 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Tytan 334 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Tytan 334.
Converted Equivalents:
Horsepower (HP)33 hp
Kilowatts (kW)24.6 kW
Metric Horsepower (PS / CV)33.5 PS
Direct Competitor Comparison
Compare Tytan 334 against same-era industry alternatives in the same horsepower class.
Current Model
Tytan
Tytan 334
Engine Power:Diesel (listed): 33 hp / 24.6 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 274
Engine Power:30
Production Years:1979 - 1983
