Tytan 504
The Tytan 504 is a tractor produced by Tytan. The listed engine power is Diesel (listed): 50 hp / 37.3 kW. Transmission: 8 forward and reverse. Operating weight: 4495 to 7139 pounds.
Engine Power
Diesel (listed): 50 hp / 37.3 kW
Fuel & Capacities
12 gal
45.4 L
Transmission
8 forward and reverse
Operating Weight
4495 to 7139 pounds
Overview
 | Utility tractor | Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Tytan |
Utility tractor | |
Built in Shandong, China | |
Tytan 504 Engine | |
|---|---|
3-cyl diesel | |
Fuel tank | 12 gal
45.4 L |
Engine details ...  | |
Tytan 504 Transmission | |
|---|---|
8-speed | |
Transmission details ...  |
Tytan 504 Power | |
|---|---|
Engine | 50 hp
37.3 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | power |
Mechanical dry shoes brakes | |
Canopy ROPS | |
Hydraulics | |
|---|---|
Valves | 4 |
Total flow | 11 gpm
41.6 lpm |
Tractor hitch | |
|---|---|
Rear Type | 1/2 |
Rear lift | 1,750 lbs
793 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live (two-stage clutch) |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Weight | 4495 to 7139 pounds |
Front tire | 8.3x20 |
Rear tire | 14.9x24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — Diesel
Manufacturer | 3105-T2 |
Fuel Type | Diesel |
Configuration | 3-cylinder |
Power | 50 hp
37.3 kW |
Air cleaner | paper element |
Rated RPM | 2300 |
Starter volts | 12 |
Transmission
Transmission — 8 forward and reverse
Gears | 8 forward and reverse |
 | |
Dimensions
Tytan 504 Tires | |
|---|---|
Ag front | 8.3x20 |
Ag rear | 14.9x24 |
Dimensions | |
|---|---|
Width | 64 inches (min)
162 cm |
73 inches (max)
185 cm | |
Ground clearance | 14.6 inches
37 cm |
Tytan 504 Weight | |
|---|---|
4,495 lbs
2038 kg | |
5,959 lbs (with loader)
2703 kg | |
7,139 lbs (with loader/backhoe)
3238 kg | |
Photos

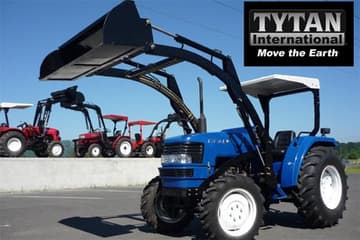

Tytan 504
Recommended Implements & Sizing Guide
Engineering recommendations for Tytan 504 based on its 50 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Tytan 504.
Estimated Continuous Field Runtime: 4.6 hrs
Approximately 4.6 hours of continuous field operation at ~75% rated power on a full tank (12 gal / 45.4 L).
Estimated 75% Load Fuel Burn~2.6 gal/hr (9.8 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Tytan 504 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Tytan 504.
Converted Equivalents:
Horsepower (HP)50 hp
Kilowatts (kW)37.3 kW
Metric Horsepower (PS / CV)50.7 PS
Direct Competitor Comparison
Compare Tytan 504 against same-era industry alternatives in the same horsepower class.
Current Model
Tytan
Tytan 504
Engine Power:Diesel (listed): 50 hp / 37.3 kW
★ Baseline Reference
