UTB/Universal 703

The UTB/Universal 703 is a tractor produced by Utb Universal. It is equipped with a 231.6 ci 3.8 L engine. The listed engine power is Diesel (listed): 70 hp / 52.2 kW. Transmission: 16 forward and 4 reverse. Operating weight: 6559 to 7298 pounds.

Overview

	1988 - 1991 3 SeriesUtility tractor 3 Series Utility tractor

Production
Manufacturer	UTB/Universal
Utility tractor
Built in Brasov, Romania
Original price	$33,000 (1991)

Variants
703DT	4WD

UTB/Universal 703 Engine
UTB 3.8L 4-cyl diesel
Fuel tank	21.13 gal 80.0 L
Engine details ...

UTB/Universal 703 Transmission
16-speed constant mesh
Transmission details ...

UTB/Universal 703 Power
Engine	70 hp 52.2 kW

Mechanical
Two- or four-wheel drive
Differential lock	mechanical rear
Power steering
Wet disc brakes
Cab standard.

Hydraulics
Pump flow	10.57 gpm 40.0 lpm

Tractor hitch
Rear Type	II
Rear lift	6393 lbs 2899 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	87 inches 220 cm
Weight	6559 to 7298 pounds
Front tire	7.50-20
2WD Rear tire	18.4-30
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12
Battery AH	150

References
3 Series Tractors published by Universal

Engine

Engine Detail — 231.6 ci / 3.8 L Diesel

Manufacturer	UTB D2404.050
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	231.6 ci 3.8 L
Bore/Stroke	4.02x4.53 inches 102 x 115 mm
Power	70 hp 52.2 kW
Rated RPM	2400
Starter	electric
Starter volts	12

Transmission

Transmission — 16 forward and 4 reverse constant mesh

Type	constant mesh
Gears	16 forward and 4 reverse

Dimensions

UTB/Universal 703 Tires
2WD Standard tires (ag)	Front: 7.50-20. Rear: 18.4-30
4WD Standard tires (ag)	Front: 12.4-24. Rear: 18.4-30

Dimensions
Wheelbase	87 inches 220 cm
Length	141.7 inches 359 cm
Height	106.3 inches 270 cm
2WD Weight	6559 lbs 2975 kg
4WD Weight	7298 lbs 3310 kg

Photos

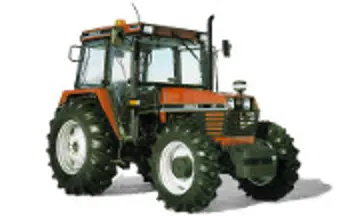

UTB/Universal 703 tractor photo
