UTB/Universal 650

The UTB/Universal 650 is a tractor produced by Utb Universal. It is equipped with a 290.5 ci 4.8 L engine. The listed engine power is Diesel (listed): 65 hp / 48.5 kW. Transmission: 10 forward and 2 reverse. Operating weight: 8818 lbs 3999 kg.

Overview

	1963 - 1973

Production
Manufacturer	UTB/Universal
Built in Brasov, Romania

Variants
650	2WD
651	4WD

UTB/Universal 650 Engine
UTB 4.8L 4-cyl diesel
Fuel tank	25.89 gal 98.0 L
Engine details ...

UTB/Universal 650 Transmission
10-speed
Transmission details ...

UTB/Universal 650 Power
Engine	65 hp 48.5 kW

Mechanical
Two- or four-wheel drive
Open operator station.

Hydraulics
Valves	2
Pump flow	10.83 gpm 41.0 lpm

Tractor hitch
Rear Type	II
Rear lift	3,597 lbs 1631 kg

Power Take-off (PTO)
Rear PTO Type	540

Dimensions & Tires
Wheelbase	95.7 inches 243 cm
Weight	8818 lbs 3999 kg
Front tire	9.50R24
Rear tire	18.4R30
Full dimensions and tires ...

Engine

Engine Detail — 290.5 ci / 4.8 L Diesel

Manufacturer	UTB D-103
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	290.5 ci 4.8 L
Bore/Stroke	4.252x5.118 inches 108 x 130 mm
Power	65 hp 48.5 kW
Rated RPM	1800

Transmission

Transmission — 10 forward and 2 reverse

Gears

10 forward and 2 reverse

Dimensions

UTB/Universal 650 Tires
Ag front	9.50R24
Ag rear	18.4R30

Dimensions
Wheelbase	95.7 inches 243 cm
Length	163 inches 414 cm
Width	78.74 inches 199 cm
Height	102.4 inches 260 cm
Weight	8818 lbs 3999 kg

Photos

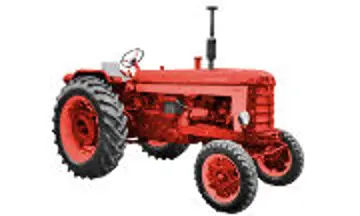

UTB/Universal 650 tractor photo
