UTB/Universal 800
The UTB/Universal 800 is a tractor produced by Utb Universal. It is equipped with a 301.6 ci 4.9 L engine. The listed engine power is Diesel (listed): 80 hp / 59.7 kW; Diesel (listed): 4 hp / 3.0 kW. Transmission: 16 forward and 4 reverse. Drive type: 4x2 2WD. Operating weight: 8157 lbs 3700 kg.
Engine Power
Diesel (listed): 80 hp / 59.7 kW; Diesel (listed): 4 hp / 3.0 kW
Drive & Traction
4x2 2WD
Fuel & Capacities
25.9 gal
98.0 L
Transmission
16 forward and 4 reverse
Operating Weight
8157 lbs
3700 kg
Overview
 | 1983 - 1984 |
|---|
Production | |
|---|---|
Manufacturer | UTB/Universal |
Built in Brasov, Romania | |
Variants | |
|---|---|
800 | 2WD |
800DT | 4WD |
UTB/Universal 800 Engine | |
|---|---|
UTB 4.9L 4-cyl diesel | |
Fuel tank | 25.9 gal
98.0 L |
Engine details ...  | |
UTB/Universal 800 Transmission | |
|---|---|
16-speed gear | |
Transmission details ...  |
UTB/Universal 800 Power | |
|---|---|
Engine | 80 hp
59.7 kW |
Mechanical | |
|---|---|
Drive | 4x2 2WD |
4x4 MFWD 4WD (800DT) | |
Differential lock | mechanical rear |
Steering | hydraulic power |
Dry disc brakes | |
Trailer brakes | aur brakes optional |
Open operator station. Cab optional. | |
Hydraulics | |
|---|---|
Type | open center |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and draft control |
Rear lift | 4850 lbs
2199 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 95.7 inches
243 cm |
Weight | 8157 lbs
3700 kg |
Front tire | 6.50/5.50-20 |
Rear tire | 18.4-30 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Battery volts | 12 |
Battery AH | 153 |

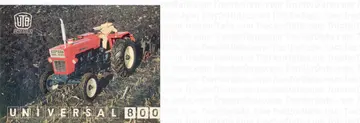

References | |
|---|---|
 | |
Universal 800 |
Engine
Engine Detail — 301.6 ci / 4.9 L Diesel
Manufacturer | UTB D-118 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 301.6 ci
4.9 L |
Bore/Stroke | 4.331x5.118 inches
110 x 130 mm |
Power | 80 hp
59.7 kW |
Fuel system | direct injection |
Compression | 17:1 |
Rated RPM | 2200 |
Torque | 220.6 lb-ft
299.1 Nm |
Torque RPM | 1500 |
Starter volts | 12 |
Starter power | 4 hp
3.0 kW |
Transmission
Transmission — 16 forward and 4 reverse gear
Type | gear |
Gears | 16 forward and 4 reverse |
Clutch | dry disc |
Four gears (1-4) plus reverse (R) with two sets of high-low ranges. | |
With 18.4-30 rear tires. | |
 | |
Dimensions
UTB/Universal 800 Tires | |
|---|---|
Ag front | 6.50/5.50-20 |
Ag rear | 18.4-30 |
Dimensions | |
|---|---|
Wheelbase | 95.7 inches
243 cm |
Length | 160.6 inches
407 cm |
Height (steering wheel) | 74.8 inches
189 cm |
Weight | 8157 lbs
3700 kg |
Ground clearance | 18.9 inches
48 cm |
Front tread | 52 to 75.6 inches
132 to 192 cm |
Rear tread | 59.1 to 82.7 inches
150 to 210 cm |
Photos
UTB 800 advertising photo.
