UTB/Universal 850

The UTB/Universal 850 is a tractor produced by Utb Universal. It is equipped with a 285.4 ci 4.7 L engine. The listed engine power is Diesel (listed): 83 hp / 61.9 kW; Diesel (listed): 4 hp / 3.0 kW. Transmission: 16 forward and 4 reverse. Drive type: 4x2 2WD. Operating weight: 9000 lbs 4082 kg.

Overview

	1984 - 1991

Production
Manufacturer	UTB/Universal
Built in Brasov, Romania
Original price	$35,000 (1991)

UTB/Universal 850 Engine
UTB 4.7L 6-cyl diesel
Fuel tank	42 gal 159.0 L
Engine details ...

UTB/Universal 850 Power
Engine	83 hp 61.9 kW

Mechanical
Drive	4x2 2WD
	4x4 MFWD 4WD (850DT)
Final drives	planetary
Steering	hydrostatic power
Wet disc brakes
Cab standard.

Hydraulics
Type	open center
Pump flow	8.2 gpm 31.0 lpm

Tractor hitch
Rear Type	II
Control	draft and position control

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000
Engine RPM	540@2125
	1000@2400

Dimensions & Tires
Wheelbase	103.1 inches 261 cm
Weight	9000 lbs 4082 kg
Front tire	7.50-20
Rear tire	16.9-38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	40
Battery volts	12
Battery AH	150

References
Loaders published in 1987, by Universal

Engine

Engine Detail — 285.4 ci / 4.7 L Diesel

Manufacturer	UTB D2601.000
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled inline
Displacement	285.4 ci 4.7 L
Bore/Stroke	3.74x4.331 inches 95 x 110 mm
Power	83 hp 61.9 kW
Air cleaner	oil bath with cyclonic pre-cleaner
Compression	17:1
Rated RPM	2400
Torque	170 lb-ft 230.5 Nm
Torque RPM	1500
Starter volts	12
Starter power	4 hp 3.0 kW

Transmission

Transmission options
12-speed partially synchronized
16-speed creeper

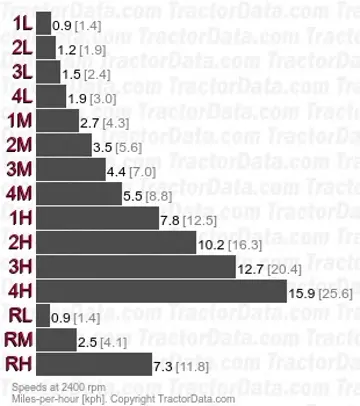

Transmission — 12 forward and 3 reverse partially synchronized

Type	partially synchronized
Gears	12 forward and 3 reverse
Clutch	330.2mm dry disc
Four gears, plus reverse, in three ranges. Gear shifts are synchronized.
With 16.9-38 rear tires.

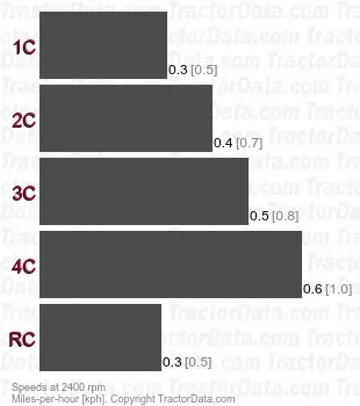

Transmission — 16 forward and 4 reverse creeper

Type	creeper
Gears	16 forward and 4 reverse
Creeper adds an additional low range to the basic transmission.
With 16.9-38 rear tires.

Dimensions

UTB/Universal 850 Tires
Ag front	7.50-20
	12.4-28 (4WD)
Ag rear	16.9-38

Dimensions
Wheelbase	103.1 inches 261 cm
Length	163 inches 414 cm
Width	80 inches (min) 203 cm
Height (cab)	107.9 inches 274 cm
Height (exhaust)	116.5 inches 295 cm
Weight	9000 lbs 4082 kg
Ground clearance	16.5 inches 41 cm
Front tread	59.1 to 82.7 inches 150 to 210 cm
Rear tread	63 to 86.6 inches 160 to 219 cm

Photos

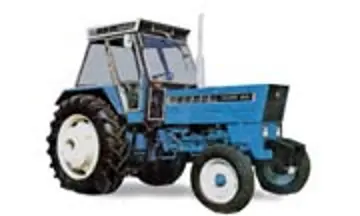

UTB/Universal 850
