UTB/Universal 853

The UTB/Universal 853 is a tractor produced by Utb Universal. It is equipped with a 231.6 ci 3.8 L engine. The listed engine power is Diesel (listed): 85 hp / 63.4 kW. Transmission: 16 forward and 4 reverse. Operating weight: 6515 to 7253 pounds.

Overview

	1994 - 2004 3 SeriesUtility tractor 3 Series Utility tractor

Production
Manufacturer	UTB/Universal
Utility tractor
Built in Brasov, Romania

UTB/Universal 853 Engine
UTB 3.8L 4-cyl diesel
Fuel tank	16.4 gal 62.1 L
Engine details ...

UTB/Universal 853 Transmission
16-speed
Transmission details ...

UTB/Universal 853 Power
Engine	85 hp 63.4 kW
PTO (claimed)	78 hp 58.2 kW

Mechanical
Two- or four-wheel drive
Final drives	planetary
Differential lock	mechanical rear
Power steering
Hydraulic wet disc brakes
Cab standard.

Hydraulics
Pressure	2500 psi 172.4 bar
Pump flow	10.8 gpm 40.9 lpm

Tractor hitch
Rear Type	II

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000
Engine RPM	540@2160
	1000@2400

Dimensions & Tires
2WD Wheelbase	86.5 inches 219 cm
4WD Wheelbase	87 inches 220 cm
Weight	6515 to 7253 pounds
Front tire	7.5-20
2WD Rear tire	13.6R-36
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

Engine

Engine Detail — 231.6 ci / 3.8 L Diesel

Manufacturer	UTB D2404.050
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	231.6 ci 3.8 L
Bore/Stroke	4.02x4.53 inches 102 x 115 mm
Power	85 hp 63.4 kW
Air cleaner	oil bath
Compression	17:1
Rated RPM	2400
Idle RPM	600-2550
Torque	210.9 lb-ft 286.0 Nm
Torque RPM	1700
Starter	electric
Starter volts	12
Oil capacity	10.6 qts 10.0 L
Coolant capacity	14.8 qts 14.0 L

Transmission

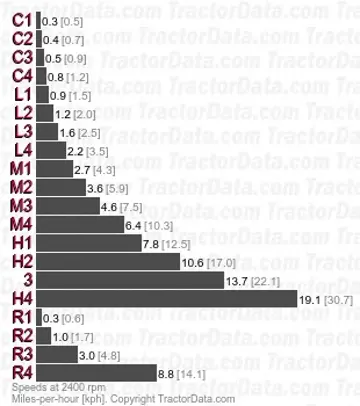

Transmission — 16 forward and 4 reverse

Gears	16 forward and 4 reverse
Oil capacity	55 qts 52.1 L
With 16.9R30 rear tires.

Dimensions

UTB/Universal 853 Tires
2WD Standard tires (ag)	Front: 7.5-20. Rear: 13.6R-36
4WD Standard tires (ag)	Front: 12.5-20. Rear: 16.9R-30

Dimensions
2WD Wheelbase	86.5 inches 219 cm
4WD Wheelbase	87 inches 220 cm
Length	141.7 inches 359 cm
Height (cab)	98.8 inches 250 cm
2WD Weight	6515 lbs 2955 kg
4WD Weight	7253 lbs 3289 kg
2WD Front tread	55 to 78 inches 139 to 198 cm
4WD Front tread	54 to 62 inches 137 to 157 cm
Rear tread	60 to 90 inches 152 to 228 cm

Photos

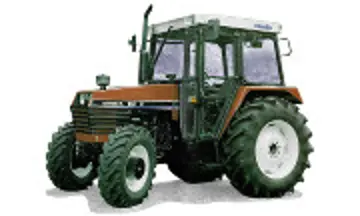

UTB/Universal 853 tractor photo
