Valmet 6800

The Valmet 6800 is a tractor produced by Valmet. It is equipped with a 268.4 ci 4.4 L engine. The rated power output is 114 hp 85.0 kW. Transmission: Delta Powershift. Operating weight: 9722 lbs 4409 kg.

Overview

	1996 - 2001 Mezzo SeriesRow-Crop tractor
1996 - 2001
Mezzo Series
Row-Crop tractor

Production
Manufacturer	Valmet
Row-Crop tractor

Valmet 6800 Engine
SisuDiesel 4.4L 4-cyl diesel
Fuel tank	43.6 gal 165.0 L
Engine details ...

Valmet 6800 Transmission
36-speed three-speed power shift
Transmission details ...

Valmet 6800 Power
Engine	114 hp 85.0 kW

Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Cab standard with optional air-conditioning.

Hydraulics
Pump flow	19.3 gpm 73.1 lpm

Tractor hitch
Rear Type	III/II
Rear lift	15430 lbs 6999 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000
Engine RPM	540@1874
	1000@2080

Dimensions & Tires
Wheelbase	91.6 inches 232 cm
Weight	9722 lbs 4409 kg
Front tire	13.6R24
Rear tire	18.4R38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

Engine

Engine Detail — 268.4 ci / 4.4 L Diesel

Manufacturer	SisuDiesel 420 DWI
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	268.4 ci 4.4 L
Bore/Stroke	4.252x4.724 inches 108 x 120 mm
Power	114 hp 85.0 kW
Compression	16.5:1
Rated RPM	2225
Torque	324.5 lb-ft 440.0 Nm
Torque RPM	1550
Starter	electric
Starter volts	12

Transmission

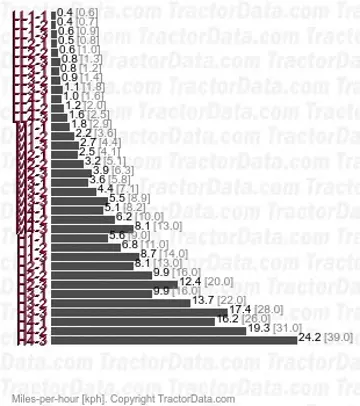

Transmission — Delta Powershift

Transmission	Delta Powershift
Type	three-speed power shift
Gears	36 forward and reverse
Four gears in three ranges with three-speed power shift and shuttle.
With 18.4R38 rear tires.

Dimensions

Valmet 6800 Tires
Ag front	13.6R24
Ag rear	18.4R38

Dimensions
Wheelbase	91.6 inches 232 cm
Length	174.2 inches 442 cm
Width	85.8 inches 217 cm
Height	109.1 inches 277 cm
Weight	9722 lbs 4409 kg
