Valmet 805

The Valmet 805 is a tractor produced by Valmet. It is equipped with a 268.5 ci 4.4 L engine. The listed engine power is Diesel (listed): 95 hp / 70.8 kW; Diesel (listed): 4 hp / 3.0 kW. Transmission: 16 forward and 8 reverse. Operating weight: 8333 to 9105 pounds.

Overview

	1982 - 1991 05 SeriesRow-Crop tractor 05 Series Row-Crop tractor

Production
Manufacturer	Valmet
Row-Crop tractor

Valmet 805 Engine
Valmet 4.4L 4-cyl diesel
Fuel tank	47.6 gal 180.2 L
Engine details ...

Valmet 805 Power
Engine	95 hp 70.8 kW

Mechanical
Two- or four-wheel drive
Differential lock	electro-hydraulic rear
Power steering
Hydraulic wet disc brakes
Cab standard. Optional air-conditioning.

Hydraulics
Pressure	2611 psi 180.0 bar
Pump flow	12.7 gpm 48.1 lpm

Tractor hitch
Rear lift	9892 lbs 4487 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
2WD Wheelbase	93.9 inches 238 cm
4WD Wheelbase	91.6 inches 232 cm
Weight	8333 to 9105 pounds
Front tire	11.00-16
2WD Rear tire	18.4-34
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	65
Battery volts	12
Battery AH	150

References
505 605 705 805 905 published in 1984, by Valmet
International Success published by Valmet
Why not buy the best? published in 1985, by Valmet

Engine

Engine Detail — 268.5 ci / 4.4 L Diesel

Manufacturer	Valmet TD44DS8
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	268.5 ci 4.4 L
Bore/Stroke	4.252x4.724 inches 108 x 120 mm
Power	95 hp 70.8 kW
Fuel system	direct injection
Pre-heating	intake air heater
Compression	16:1
Rated RPM	2100
Starter	electric
Starter volts	12
Starter power	4 hp 3.0 kW

Transmission

Transmission options
8-speed synchromesh
16-speed two-speed power shift

Transmission — 8 forward and 4 reverse synchromesh

Type	synchromesh
Gears	8 forward and 4 reverse
Clutch	330mm dry disc
Four synchronized gears (1-4) in two ranges (low/high) plus reverse range.
With 16.9R38 rear tires.

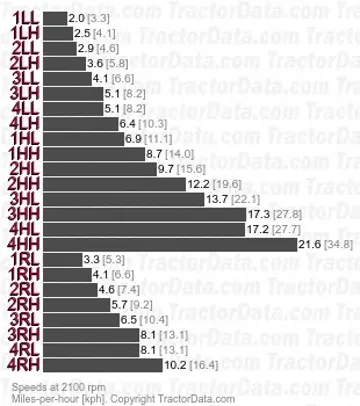

Transmission — 16 forward and 8 reverse two-speed power shift

Type	two-speed power shift
Gears	16 forward and 8 reverse
A push-button two-speed powershift added to the basic transmission.
With 16.9R38 rear tires.

Dimensions

Valmet 805 Tires
2WD Standard tires (ag)	Front: 11.00-16. Rear: 18.4-34
4WD Standard tires (ag)	Front: 14.9-24. Rear: 18.4-34

Dimensions
2WD Wheelbase	93.9 inches 238 cm
4WD Wheelbase	91.6 inches 232 cm
Length	177.8 inches 451 cm
Width	84.3 inches 214 cm
Height	106.5 inches 270 cm
2WD Weight	8333 lbs 3779 kg
4WD Weight	9105 lbs 4130 kg
Ground clearance	18.7 inches 47 cm

Photos

Valmet 805 tractor photo
