Valmet 885
The Valmet 885 is a tractor produced by Valmet. It is equipped with a 239.3 ci 3.9 L engine. Transmission: 16 forward and 8 reverse. Operating weight: 8600 lbs 3900 kg.
Fuel & Capacities
47.5 gal
179.8 L
Transmission
16 forward and 8 reverse
Operating Weight
8600 lbs
3900 kg
Valmet 885 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | Row-Crop tractor | Row-Crop tractor |
|---|
Production | |
|---|---|
Manufacturer | Valmet |
Row-Crop tractor | |
Built in Brazil | |
Valmet 885 Engine | |
|---|---|
MWM 3.9L 4-cyl diesel | |
Engine details ...  |
Valmet 885 Transmission | |
|---|---|
16-speed two-speed power shift | |
Transmission details ...  |
Valmet 885 Power | |
|---|---|
PTO (claimed) | 75 hp
55.9 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Final drives | planetary |
Differential lock | mechanical rear |
Power steering | |
Hydraulic wet disc brakes | |
Four-post ROPS. Cab available with air-conditioning. | |
Capacity | |
|---|---|
Fuel | 47.5 gal
179.8 L |
Hydraulic system | 17.4 gal
65.9 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 17.4 gal
65.9 L |
Pressure | 2560 psi
176.5 bar |
Valves | 2 |
Pump flow | 13.7 gpm
51.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and draft control |
Rear lift | 5710 lbs
2590 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@1860 |
Dimensions & Tires | |
|---|---|
Wheelbase | 92.5 inches
234 cm |
Weight | 8600 lbs
3900 kg |
Front tire | 14.9-24 |
Rear tire | 18.4-34 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 65 |
Battery volts | 12 |
Battery AH | 135 |
References | |
|---|---|
 | |
885 4x4 published by Valmet |
Engine
Engine Detail — 239.3 ci / 3.9 L Diesel
Manufacturer | MWM D229 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 239.3 ci
3.9 L |
Bore/Stroke | 4.01x4.72 inches
102 x 120 mm |
Air cleaner | dry |
Rated RPM | 2300 |
Torque | 206 lb-ft
279.3 Nm |
Torque RPM | 1500 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 10 qts
9.5 L |
Coolant capacity | 13.7 qts
13.0 L |
Transmission

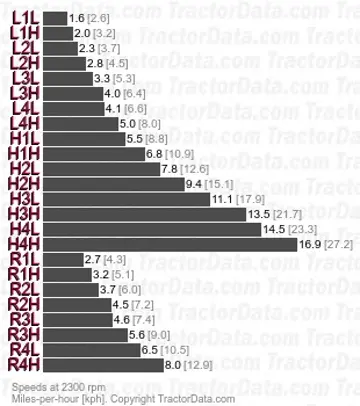

Transmission — 16 forward and 8 reverse two-speed power shift
Type | two-speed power shift |
Gears | 16 forward and 8 reverse |
Four gears in two ranges, plus reverse, with two-speed power shift. | |
With 18.4x34 rear tires. | |
 | |
Dimensions
Valmet 885 Tires | |
|---|---|
Standard tires (ag) | Front: 14.9-24. Rear: 18.4-34 |
Dimensions | |
|---|---|
Wheelbase | 92.5 inches
234 cm |
Length | 173 inches
439 cm |
Width | 83.5 inches
212 cm |
Height (ROPS) | 115.6 inches
293 cm |
Weight | 8600 lbs
3900 kg |
Clearance (drawbar) | 16.7 inches
42 cm |
Front tread | 60 to 80 inches
152 to 203 cm |
Rear tread | 60 to 84.2 inches
152 to 213 cm |
