Valmet 985 4x4

The Valmet 985 4x4 is a tractor produced by Valmet. It is equipped with a 239.3 ci 3.9 L engine. Transmission: 16 forward and 8 reverse. Operating weight: 8730 lbs 3959 kg.

Fuel & Capacities
47.5 gal 179.8 L
Transmission
16 forward and 8 reverse
Operating Weight
8730 lbs 3959 kg

Overview

Valmet 985 4x4 tractor photo
Row-Crop tractor
Row-Crop tractor
Production
Manufacturer
Valmet
Row-Crop tractor
Built in Brazil
Valmet 985 4x4 Engine
MWM 3.9L 4-cyl diesel
Engine details ...
Valmet 985 4x4 Transmission
16-speed two-speed power shift
Transmission details ...
Valmet 985 4x4 Power
PTO (claimed)
94 hp 70.1 kW
Mechanical
Four-wheel drive
Final drives
planetary
Differential lock
mechanical rear
Power steering
Hydraulic wet disc brakes
Four-post ROPS. Cab available with air-conditioning.
Capacity
Fuel
47.5 gal 179.8 L
Hydraulic system
17.4 gal 65.9 L
Hydraulics
Type
open center
Capacity
17.4 gal 65.9 L
Pressure
2560 psi 176.5 bar
Valves
2
Pump flow
13.7 gpm 51.9 lpm
Tractor hitch
Rear Type
II
Control
position and draft control
Rear lift
5710 lbs 2590 kg
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540 (1.375)
Engine RPM
540@1860
Dimensions & Tires
Wheelbase
98.4 inches 249 cm
Weight
8730 lbs 3959 kg
Front tire
14.9-24
Rear tire
18.4-34
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Charging amps
65
Battery volts
12
Battery AH
135
References
985 4x4 references literature
985 4x4 Turbo published by Valmet

Engine

Engine Detail — 239.3 ci / 3.9 L Diesel

Manufacturer
MWM TD229
Configuration
turbocharged diesel, 4-cylinder, liquid-cooled
Displacement
239.3 ci 3.9 L
Bore/Stroke
4.01x4.72 inches 102 x 120 mm
Air cleaner
dry
Rated RPM
2300
Torque
274 lb-ft 371.5 Nm
Torque RPM
1500
Starter
electric
Starter volts
12
Oil capacity
11.6 qts 11.0 L
Coolant capacity
13.7 qts 13.0 L

Transmission

Transmission — 16 forward and 8 reverse two-speed power shift

Type
two-speed power shift
Gears
16 forward and 8 reverse
Four gears in two ranges, plus reverse, with two-speed power shift.
With 18.4x34 rear tires.

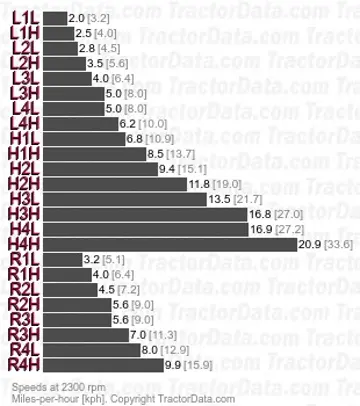

985 4x4 two-speed power shift speeds

Dimensions

Valmet 985 4x4 Tires
Standard tires (ag)
Front: 14.9-24. Rear: 18.4-34
Dimensions
Wheelbase
98.4 inches 249 cm
Length
179 inches 454 cm
Width
91 inches 231 cm
Height (ROPS)
113 inches 287 cm
Weight
8730 lbs 3959 kg
Clearance (drawbar)
16.7 inches 42 cm
Front tread
60 to 80 inches 152 to 203 cm
Rear tread
60 to 84.2 inches 152 to 213 cm

Photos

Valmet 985 4x4 tractor photo

Valmet 985 4x4 tractor photo

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Valmet 985 4x4.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Valmet 985 4x4 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Valmet 985 4x4.

Converted Equivalents:

Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
