Valtra 3500
The Valtra 3500 is a tractor produced by Valtra. It is equipped with a 249.3 ci 4.1 L engine. The listed engine power is Diesel (listed): 76 hp / 56.7 kW. Transmission: 24 forward and reverse. Operating weight: 5038 to 6096 pounds.
Engine Power
Diesel (listed): 76 hp / 56.7 kW
Fuel & Capacities
15.9 gal
60.2 L
Transmission
24 forward and reverse
Operating Weight
5038 to 6096 pounds
Overview
 | 2004 - 2008
3000 SeriesCompact Utility tractor
3000 Series
Compact Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Valtra |
Compact Utility tractor | |
Variants | |
|---|---|
3500C | compact tractor |
3500F | narrow orchard tractor |
3500V | ultra-narrow vineyard tractor |
Valtra 3500 Engine | |
|---|---|
Deutz 4.1L 4-cyl diesel | |
Fuel tank | 15.9 gal
60.2 L |
Engine details ...  | |
Valtra 3500 Transmission | |
|---|---|
24-speed partially synchronized | |
Transmission details ...  |
Valtra 3500 Power | |
|---|---|
Engine | 76 hp
56.7 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Wet disc brakes | |
Cab optional with heat and A/C |
Hydraulics | |
|---|---|
Valves | 1 to 4 |
Pump flow | 9.5 gpm
36.0 lpm |
Steering flow | 7.1 gpm
26.9 lpm |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | ground/540/540E |
ground/540/1000 OptOptional | |
Dimensions & Tires | |
|---|---|
Wheelbase | 83.1 inches (2WD)
211 cm |
87.6 inches (4WD)
222 cm | |
Weight | 5038 to 6096 pounds |
Front tire | 6.50-16 |
Rear tire | 14.9R28 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Battery volts | 12 |
Engine
Engine Detail — 249.3 ci / 4.1 L Diesel
Manufacturer | Deutz F4L913 |
Fuel Type | Diesel |
Configuration | 4-cylinder, air-cooled |
Displacement | 249.3 ci
4.1 L |
Bore/Stroke | 4.016x4.921 inches
102 x 125 mm |
Power | 76 hp
56.7 kW |
Rated RPM | 2350 |
Torque | 191.8 lb-ft
260.1 Nm |
Torque RPM | 1600 |
Firing order | 1-3-4-2 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 24 forward and reverse partially synchronized
Type | partially synchronized |
Gears | 24 forward and reverse |
Four synchronized gears in three ranges with splitter. | |
Dimensions
Valtra 3500 Tires | |
|---|---|
Ag front | 6.50-16 (2WD) |
12.4R20 (4WD) | |
Ag rear | 14.9R28 |
Ag front | 10.0/75-15.3 (orchard) |
Ag rear | 360/70-24 (orchard) |
Dimensions | |
|---|---|
Wheelbase | 83.1 inches (2WD)
211 cm |
87.6 inches (4WD)
222 cm | |
Length | 153.1 inches
388 cm |
Width | 66.9 inches
169 cm |
46 inches (V)
116 cm | |
Height (ROPS) | 101.4 inches
257 cm |
Height (cab) | 94.1 inches
239 cm |
Ground clearance | 15.4 inches
39 cm |
Valtra 3500 Weight | |
|---|---|
2WD ROPS | 5038 lbs
2285 kg |
2WD Cab | 5523 lbs
2505 kg |
4WD ROPS | 5611 lbs
2545 kg |
4WD Cab | 6096 lbs
2765 kg |
Photos

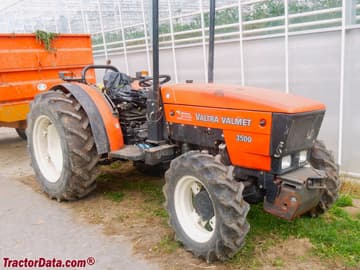

Valtra Valmet 3500 utility tractor.
Recommended Implements & Sizing Guide
Engineering recommendations for Valtra 3500 based on its 76 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 7 to 8 ft (84-96 in)2.1 - 2.4 m | Heavy Duty | Heavy-duty twin spindle cutter for overgrown acreage. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Valtra 3500.
Estimated Continuous Field Runtime: 4 hrs
Approximately 4 hours of continuous field operation at ~75% rated power on a full tank (15.9 gal / 60.2 L).
Estimated 75% Load Fuel Burn~4 gal/hr (15 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Valtra 3500 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Valtra 3500.
Converted Equivalents:
Horsepower (HP)76 hp
Kilowatts (kW)56.7 kW
Metric Horsepower (PS / CV)77.1 PS
Direct Competitor Comparison
Compare Valtra 3500 against same-era industry alternatives in the same horsepower class.
Current Model
Valtra
Valtra 3500
Engine Power:Diesel (listed): 76 hp / 56.7 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 664
Engine Power:68.9
Production Years:1972 - 1973
