New Holland 5610

The New Holland 5610 is a tractor produced by New Holland. It is equipped with a 256 ci 4.2 L engine. The listed engine power is Diesel (listed): 68.5 hp / 51.1 kW; Diesel (gross): 72 hp / 53.7 kW. Transmission: Dual Power. Operating weight: 5695 to 6300 pounds.

Overview

	1982 - 1993 Utility tractor

Note: the New Holland model 5610 is the same as the Ford 5610. The following data is from the 5610 listing.

Production
Manufacturer	New Holland
Utility tractor
Original price was $24,500 in 1993

New Holland 5610 Engine
Ford 4.2L 4-cyl diesel
Engine details ...

New Holland 5610 Power
Engine (gross)	72 hp 53.7 kW
Engine	68.5 hp 51.1 kW
PTO (claimed)	62 hp 46.2 kW
Drawbar (tested)	53.43 hp 39.8 kW
PTO (tested)	62.57 hp 46.7 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Differential lock	mechanical rear
Power steering
Differential mechanical wet disc brakes
Two-post fixed ROPS. Cab optional with air-conditioning.

Capacity
Fuel	21 gal 79.5 L
Hydraulic system	15 gal 56.8 L

Hydraulics
Type	open center
Capacity	15 gal 56.8 L
Pressure	2500 psi 172.4 bar
Valves	1
Pump flow	9.7 gpm (Series I) 36.7 lpm
	18.2 gpm (Series II) 68.9 lpm
Steering flow	3.6 gpm 13.6 lpm

Tractor hitch
Rear Type	II/I
Control	position and top-link draft control
Rear lift (at 24"/610mm)	3120 lbs (Series I) 1415 kg
	4040 lbs (Series II) 1832 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540
	540/1000 OptOptional
Engine RPM	540@1902
	1000@1902

Dimensions & Tires
2WD Wheelbase	87.5 inches 222 cm
4WD Wheelbase	88.8 inches 225 cm
Weight	5695 to 6300 pounds
Front tire	7.50-16
Rear tire	16.9-30
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	32 (Series I)
	51 (Series II ROPS)
	75 (Series II Cab)
Battery volts	12
Battery AH	128

Engine

Note: the New Holland model 5610 is the same as the Ford 5610. The following data is from the 5610 listing.

Engine Detail — 256 ci / 4.2 L Diesel

Manufacturer	Ford
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	256 ci 4.2 L
Bore/Stroke	4.4x4.2 inches 112 x 107 mm
Power	68.5 hp 51.1 kW
Power (gross)	72 hp 53.7 kW
Air cleaner	dry
Compression	16.3:1
Rated RPM	2100
Torque	192 lb-ft 260.4 Nm
Starter volts	12
Oil capacity	9 qts 8.5 L
Coolant capacity	13.5 qts 12.8 L

Transmission

Note: the New Holland model 5610 is the same as the Ford 5610. The following data is from the 5610 listing.

Transmission options
8-speed
8-speed synchromesh
16-speed partial power shift
16-speed synchromesh partial power shift

Transmission — Dual-range

Transmission	Dual-range
Gears	8 forward and 2 reverse
Clutch	305mm dry disc
With 18.4x34 rear tires.

Transmission — Dual-range

Transmission	Dual-range
Type	synchromesh
Gears	8 forward and 4 reverse
With 18.4x34 rear tires.

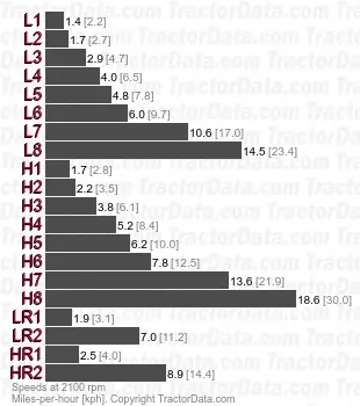

Transmission — Dual Power

Transmission	Dual Power
Type	partial power shift
Gears	16 forward and 4 reverse
The Dual Power adds a shift-on-the-move to an under-speed on the basic 8/2 gear transmission.
With 18.4x34 rear tires.

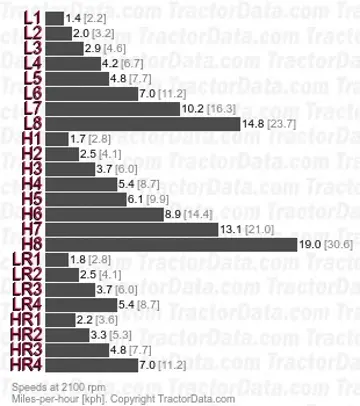

Transmission — Dual Power

Transmission	Dual Power
Type	synchromesh partial power shift
Gears	16 forward and 8 reverse
A shift-on-the-move under-speed added to the 8/4 synchromesh transmission.
With 18.4x34 rear tires.

Dimensions

Note: the New Holland model 5610 is the same as the Ford 5610. The following data is from the 5610 listing.

New Holland 5610 Tires
Ag front	7.50-16 (2WD)
	11.2-24 (4WD)
Ag rear	16.9-30
Ag front	7.50-18 (2WD)
	10.00-16 (2WD)
	12.4-24 (4WD)
	13.6-24 (4WD)
	14.9-24 (4WD)
Ag rear	18.4-30
	16.9-34
	18.4-34
	15.5-38
	16.9-38

Dimensions
2WD Wheelbase	87.5 inches 222 cm
4WD Wheelbase	88.8 inches 225 cm
Length	145 inches 368 cm
Width	68.6 inches 174 cm
Height (ROPS)	95.9 inches 243 cm
Height (cab)	106.6 inches 270 cm
Ground clearance	18.4 inches 46 cm
Front tread	52 to 80.5 inches 132 to 204 cm
Rear tread	60 to 80 inches 152 to 203 cm (manual)
Rear tread	56 to 90 inches 142 to 228 cm (power)

New Holland 5610 Weight
Shipping	5695 lbs 2583 kg
2WD ROPS Operating	6300 lbs 2857 kg
Ballasted	9700 lbs 4399 kg

Tests

Note: the New Holland model 5610 is the same as the Ford 5610. The following data is from the 5610 listing.

Tractor Tests
NTTL 1428: diesel 16x4 4WD
NTTL 1429: diesel 16x8 2WD

Nebraska Tractor Test 1428
Diesel 16x4 4WD March 25 - April 19, 1982 Link: Nebraska Tractor Test 1428 file
PTO performance
Power at rated engine speed	62.54 hp 46.6 kW
Fuel use	4.2 gal/hour 15.9 l/hour
Power at rated PTO speed	60.58 hp 45.2 kW
Fuel use	3.9 gal/hour 14.8 l/hour
Drawbar performance
Max power	53.43 hp 39.8 kW
Fuel use	4.2 gal/hour 15.9 l/hour
Gear 6L used for power test.
Max pull	7,408 lbs 3360 kg
Gear 3L used for pull test.

Nebraska Tractor Test 1429
Diesel 16x8 2WD April 5 - May 6, 1982 Link: Nebraska Tractor Test 1429 file
PTO performance
Power at rated engine speed	62.57 hp 46.7 kW
Fuel use	4.2 gal/hour 15.9 l/hour
Power at rated PTO speed	59.99 hp 44.7 kW
Fuel use	3.9 gal/hour 14.8 l/hour
Drawbar performance
Max power	52.98 hp 39.5 kW
Fuel use	4.1 gal/hour 15.5 l/hour
Gear 6L used for power test.
Max pull	7,578 lbs 3437 kg
Gear 2H used for pull test.

Attachments

Note: the New Holland model 5610 is the same as the Ford 5610. The following data is from the 5610 listing.

Attachment overview
Ford 777B loader
Ford 777D loader
Ford 777F loader
Ford 7210 loader
Three loaders were available. The 777B was available for two-wheel drive tractors. The 777D could be fitted to 2WD models with ROPS. The 777F loader fit four-wheel drive tractors with ROPS or cab.
